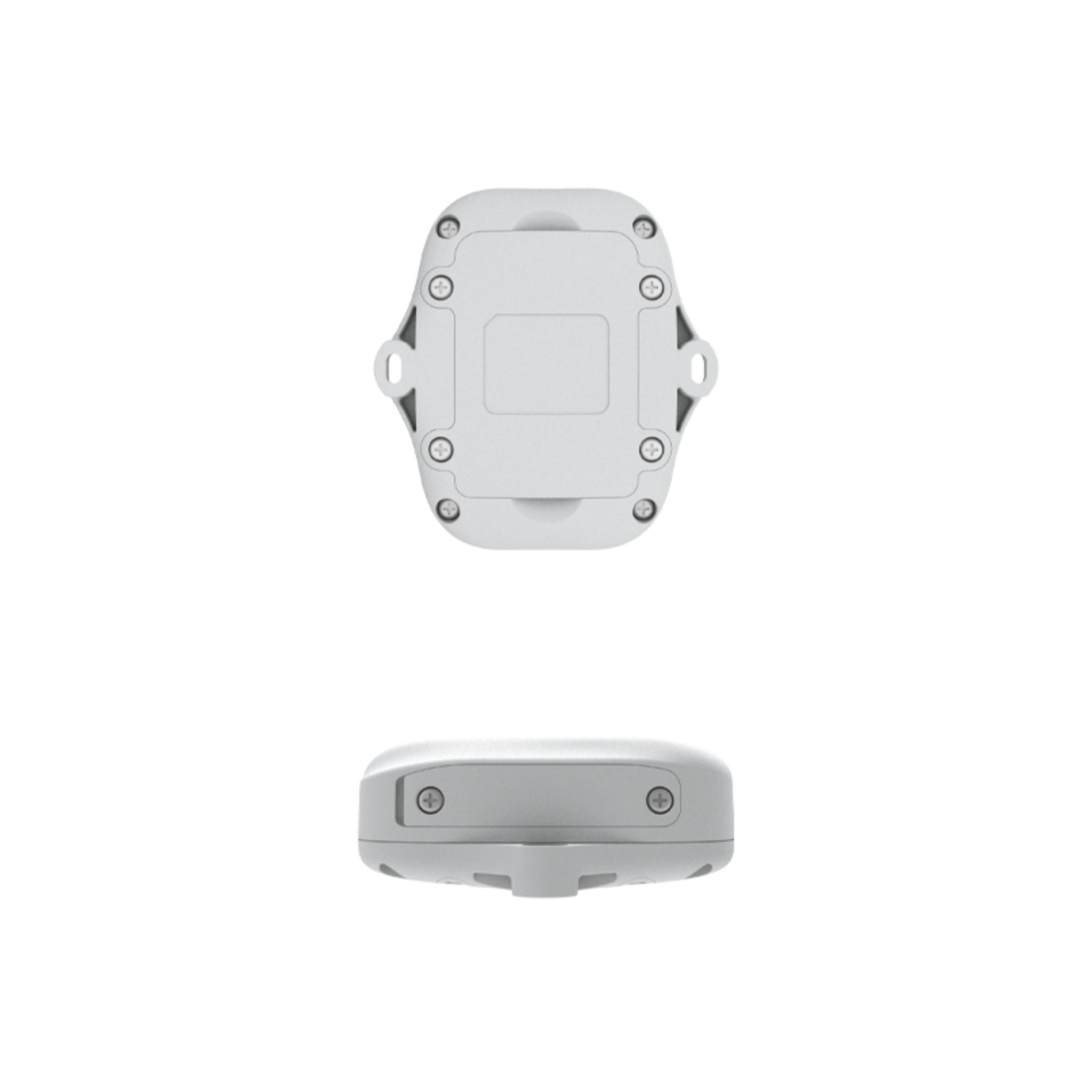

LoRaWAN Temperature & Humidity Sensor
LoRaWAN Temperature & Humidity Sensor with IP67 protection for long-range, low-power environmental monitoring in cold chain logistics, warehouses, laboratories, and industrial IoT applications.
Need bulk pricing or technical details? Contact us
KEY FEATURES
- Wireless
- Serial
- Ethernet
- Remote Control
- Industrial Automation
Description
The LoRaWAN Temperature & Humidity Sensor is a high-accuracy, low-power wireless sensing device designed for continuous environmental monitoring in industrial IoT, cold chain transportation, laboratories, warehouses, and M2M applications. Built on LoRaWAN technology, it delivers long-range communication with ultra-low power consumption, enabling multi-year battery life without external power. Featuring a digital temperature and humidity sensor with wide measurement ranges, IP67 waterproof and dustproof enclosure, and strong signal penetration across multiple floors, the sensor ensures reliable real-time data collection even in harsh environments. Its compact design, wall-mount installation, and maintenance-free operation make it ideal for scalable IoT deployments requiring precise temperature and humidity tracking.
Specification
Sensor & Measurement Specifications
- Sensor Type: Digital temperature and humidity sensor
- Temperature Measuring Range: -40°C to 125°C
- Humidity Measuring Range: 0 to 100% RH
- Temperature Accuracy: ±0.2°C (typical 0–65°C), max ±0.8°C
- Humidity Accuracy: ±1.8% RH (typical 30–70% RH), max ±7% RH
LoRaWAN Communication Specifications
- Supported Protocols: LoRaWAN®, Private LoRa protocol
- Operating Frequency Bands: 410–510 MHz, 863–928 MHz
- Indoor Communication Distance: Up to 6 floors penetration
- Outdoor Communication Distance: Up to 4.2 km (line of sight)
Power & Battery Performance
- Battery Type: Built-in 3.6V / 8200mAh lithium battery (disposable)
- Sleep Mode Current: ≤15.3 µA
- Receiving Current: ≤11.3 mA
- Transmitting Current: ≤86.2 mA (SF9 @ 20 dBm, <0.53s)
- Battery Life (5 min interval): Up to 4–4.5 years (depending on SF level)
- Battery Life (10 min interval): Up to 8–9 years (depending on SF level)
Hardware & System Specifications
- CPU: Industrial-grade 32-bit communication processor
- Flash Memory: 128 KB
- SRAM: 16 KB
Mechanical & Environmental Specifications
- Enclosure Material: PC + ABS, UV-resistant and anti-aging
- Protection Level: IP67 waterproof and dustproof
- Flame Resistance: UL94V-0
- Dimensions: 90 × 65 × 34.5 mm (excluding antenna and mountings)
- Weight: 365 g
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: Up to 95% RH (non-condensing)
Installation & Deployment
- Installation Method: Wall-mounted installation
- Power Requirement: Battery-powered, no external wiring required
- Application Environments: Indoor and outdoor industrial environments
Shipping & Delivery
- Orders are usually processed within 1–2 business days.
- Standard delivery time is 5–7 business days, depending on your location.
- Tracking details will be shared once your order is shipped.
- For detailed shipping terms, please refer to our Shipping Policy.
Frequently Asked Questions
Quick answers to common questions about our products
What is the LoRaWAN Temperature & Humidity Sensor used for?
It is used for continuous monitoring of temperature and humidity in industrial IoT environments such as cold chain logistics, warehouses, laboratories, data centers, and M2M applications.
How does the sensor communicate over long distances?
The sensor uses LoRaWAN technology, enabling low-power, long-range wireless communication with strong signal penetration across multiple floors and outdoor distances up to several kilometers.
Does the sensor require external power or wiring?
No. The device is powered by a built-in lithium battery and does not require any external power supply or wiring.
How long does the battery last?
Depending on the data collection interval and spreading factor, the battery can last between 4 to 9 years under typical operating conditions.
Is the sensor suitable for harsh environments?
Yes. It features an IP67-rated enclosure that is waterproof, dustproof, UV-resistant, and suitable for harsh industrial environments.
How is the sensor installed?
The sensor supports wall-mounted installation using standard mounting hardware, allowing quick and secure deployment.
Can the sensor be used in cold chain transportation?
Yes. Its wide temperature range, high accuracy, and long battery life make it ideal for cold chain transportation and storage monitoring.
Does the sensor support LoRaWAN gateways from different vendors?
Yes. The sensor supports standard LoRaWAN protocol and is compatible with most LoRaWAN gateways and network servers.
