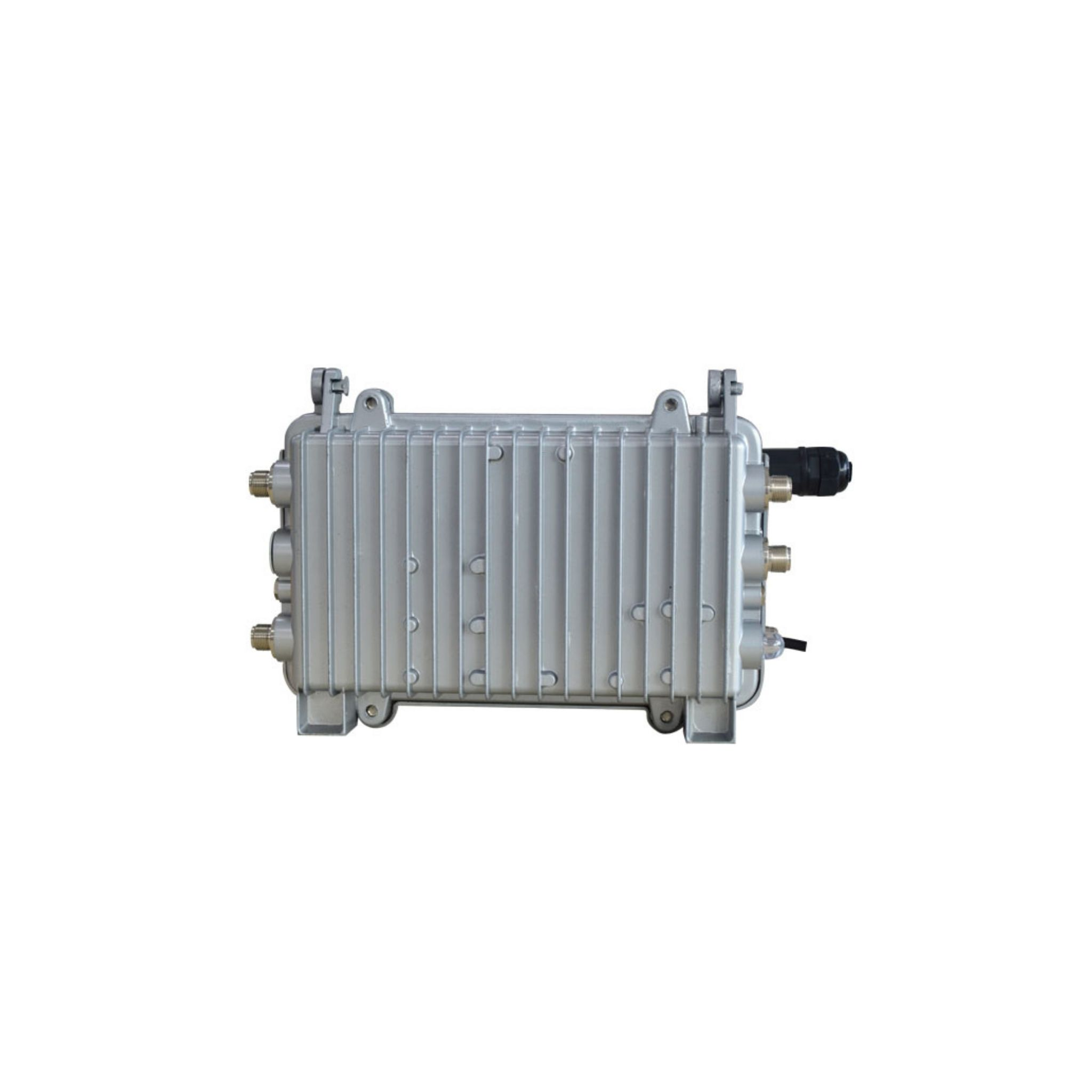

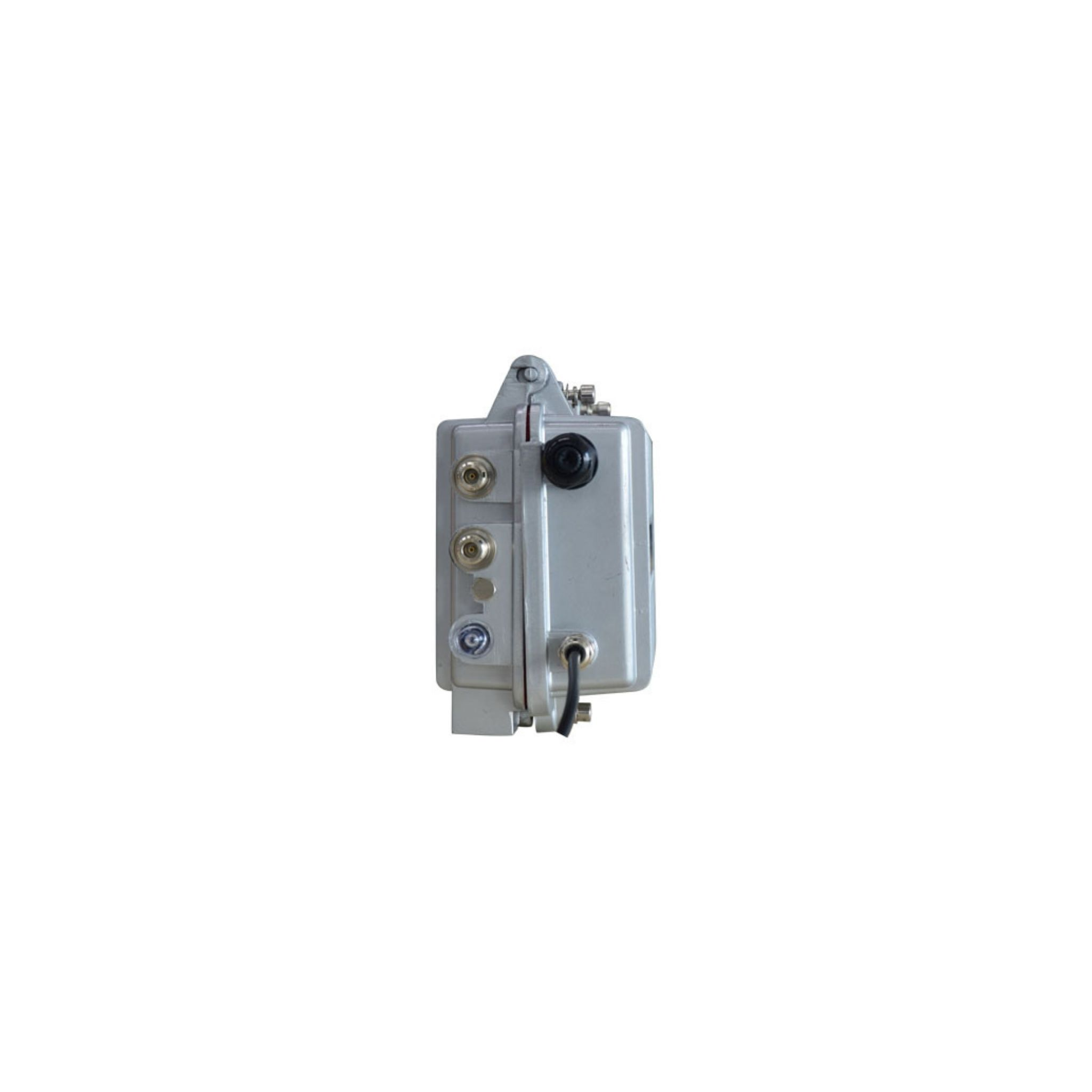

LoRaWAN Gateway (Outdoor) - View 1
1 / 3
NEW

LoRaWAN Gateway (Outdoor)

Starting from ₹15,450

Industrial-grade LoRaWAN Gateway (Outdoor) with long-range coverage, IP65 enclosure, multi-band LoRa support, 4G/Ethernet backhaul, and high receiver sensitivity up to -142 dBm for reliable outdoor IoT deployments.

Need bulk pricing or technical details? Contact us

KEY FEATURES

  • Wireless
  • Serial
  • Ethernet
  • Remote Control
  • Industrial Automation

Description

The LoRaWAN Gateway (Outdoor) is a rugged, high-performance outdoor IoT gateway designed to aggregate data from large-scale LoRaWAN sensor networks and securely transmit it to cloud platforms via 3G/4G cellular or wired Ethernet. Built for harsh environments, it features an aluminum alloy enclosure with IP65 protection, ultra-high receiver sensitivity, and wide multi-band LoRaWAN frequency support for global deployments. The gateway supports standard LoRaWAN and LinkWAN protocols, enabling seamless integration with Class A, B, and C LoRaWAN end devices. With long communication distances of up to 6 km in urban environments and up to 9 km in line-of-sight outdoor scenarios, it is ideal for smart cities, industrial IoT, utilities, agriculture, logistics yards, and campus-wide monitoring. Designed for continuous 24×7 operation, the gateway includes watchdog protection, local data storage, GPS positioning, multiple power options including AC, PoE, and solar, and flexible installation options such as wall and pole mounting. It delivers reliable, scalable, and secure outdoor LoRaWAN connectivity for mission-critical IoT infrastructure.

Specification

LoRaWAN Communication

  • Network Topology: Star topology
  • LoRa Protocols: LoRaWAN, LinkWAN
  • Device Classes: Class A, Class B, Class C
  • Operating Frequencies: EU433, CN470-510, EU863-870, US902-928, AU915-928, AS923, KR920-923
  • Upstream Channels: 8
  • Downstream Channels: 1
  • Communication Bandwidth: 125 kHz / 250 kHz / 500 kHz
  • Max TX Power: 23 ±2 dBm
  • Receiver Sensitivity: -142 dBm @ LoRa
  • Outdoor Communication Distance: Up to 9 km (line-of-sight)
  • Urban Communication Distance: Up to 6 km

Backhaul & Connectivity

  • Uplink Methods: 3G, 4G, Wired Ethernet
  • Ethernet Ports: 1 × WAN, 4 × LAN (10/100 Mbps)
  • Wi-Fi: IEEE 802.11 b/g/n
  • SIM Interface: Standard SIM/UIM slot with ESD protection

System & Performance

  • CPU: Industrial-grade 32-bit processor
  • Wireless Module: Industrial-grade multi-channel LoRa RF module
  • Local Storage: 32 GB TF card
  • Location Services: GPS, BeiDou (optional)
  • Data Rate Control: Adaptive Data Rate (ADR)
  • System Reliability: Watchdog timer, anti-drop online protection

Antenna Interfaces

  • LoRa Antenna: N-type female, fiberglass, 2 dBi
  • Cellular Antenna: N-type female, fiberglass, 3 dBi
  • Wi-Fi Antenna: N-type female, 2.4 GHz, 3 dBi
  • GPS Antenna: N-type female, 4 dBi

Power & Consumption

  • Power Supply Options: AC 220V, PoE, Solar (optional)
  • PoE Standard: IEEE 802.3af / IEEE 802.3at
  • Standby Consumption: ≤140 mA @ 12V
  • Transmit Current: ≤550 mA @ 12V
  • Receive Current: ≤420 mA @ 12V

Mechanical & Environmental

  • Enclosure Material: Aluminum alloy
  • Ingress Protection: IP65
  • Dimensions: 289.4 × 217.5 × 115 mm
  • Weight: Approx. 2700 g
  • Installation: Wall-mount or pole-mount
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +125°C
  • Operating Humidity: 95% non-condensing

Certifications & Compliance

  • Certifications: CE, FCC

Shipping & Delivery

  • Orders are usually processed within 1–2 business days.
  • Standard delivery time is 5–7 business days, depending on your location.
  • Tracking details will be shared once your order is shipped.
  • For detailed shipping terms, please refer to our Shipping Policy.

Resources

User Manual
Quick Start Guide
Technical Datasheet
Installation Tutorial Video
GUI Installation
Driver Installation
Onboarding with CAN Device
Installation Tutorial Video
GUI Installation
Driver Installation
Onboarding with CAN Device

Frequently Asked Questions

Quick answers to common questions about our products

What is the primary use of the LoRaWAN Gateway (Outdoor)?

It is used to collect data from LoRaWAN sensors and devices and forward it to cloud platforms over cellular or Ethernet networks for large-scale outdoor IoT deployments.

What communication range can this outdoor LoRaWAN gateway achieve?

It supports up to 9 km line-of-sight outdoor communication and up to 6 km in dense urban environments.

Which LoRaWAN device classes are supported?

The gateway supports LoRaWAN Class A, Class B, and Class C end devices.

How is the gateway powered in outdoor installations?

It can be powered using AC 220V, PoE (IEEE 802.3af/at), or optional solar power for remote outdoor locations.

Is the gateway suitable for harsh outdoor environments?

Yes, it features an IP65-rated aluminum enclosure, wide temperature tolerance, and industrial-grade components for continuous outdoor operation.

What installation methods are supported?

The gateway supports wall mounting and pole mounting using the provided installation accessories.

Can the gateway store data locally if the network goes down?

Yes, it includes a 32 GB TF card for local data buffering and storage during network interruptions.

Does it support GPS-based location tracking?

Yes, GPS and BeiDou location services are supported as optional features.

Which industries typically use this gateway?

It is commonly used in smart cities, utilities, industrial IoT, smart transportation, agriculture, environmental monitoring, and large campus deployments.
