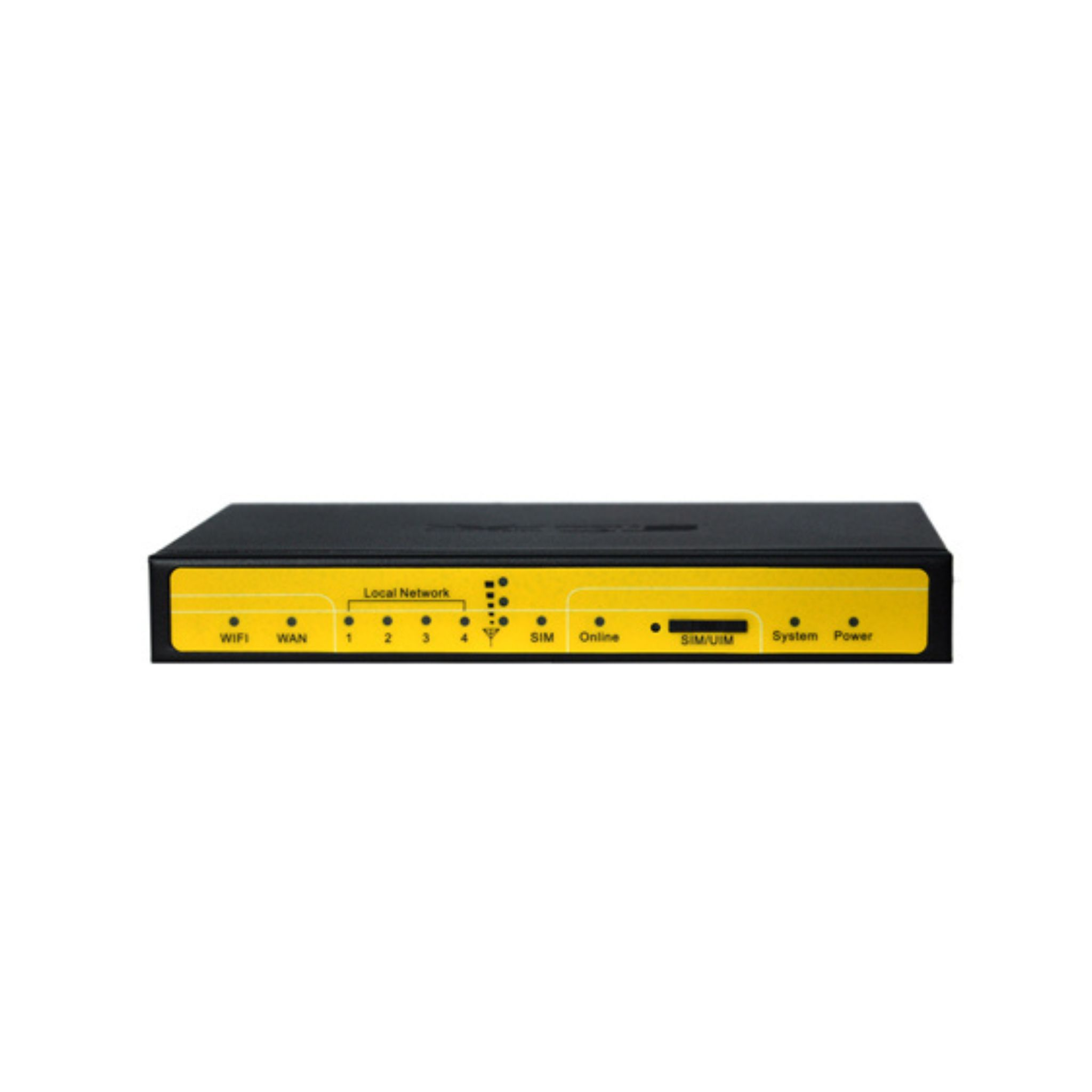

LTE Wireless Router - View 1
1 / 5
NEW

LTE Wireless Router

Starting from ₹15,300

Industrial LTE wireless router designed for secure and stable M2M communication, offering RS232/RS485 interfaces, Ethernet LAN/WAN, Wi-Fi connectivity, VPN support, and reliable operation in harsh industrial environments.

Need bulk pricing or technical details? Contact us

KEY FEATURES

  • Wireless
  • Serial
  • Ethernet
  • Remote Control
  • Industrial Automation

Description

The LTE Wireless Router is an industrial-grade cellular networking device engineered to provide secure, high-speed wireless data transmission for IoT and M2M applications. Built with a high-performance 32-bit industrial processor and embedded Linux operating system, the router ensures stable, continuous operation even in harsh industrial environments. Supporting LTE cellular connectivity along with Ethernet LAN/WAN, Wi-Fi, and serial interfaces, it enables seamless integration of field devices, controllers, and sensors into modern IP-based networks. Advanced features such as watchdog protection, VPN security, firewall mechanisms, and remote management make it ideal for smart factories, smart grids, transportation systems, and industrial automation deployments.

Specification

Cellular Specifications

  • Network Standards: FDD-LTE, TD-LTE, WCDMA, CDMA, GPRS, EDGE
  • LTE Bands: 2600 / 2100 / 1800 / 900 / 800 MHz, 700 / 1700 / 2100 MHz (optional)
  • Maximum Data Speed: LTE Download up to 100 Mbps, Upload up to 50 Mbps
  • Transmit Power: < 23 dBm
  • Receiver Sensitivity: < -97 dBm

Wi-Fi Specifications

  • Wi-Fi Standard: IEEE 802.11 b/g/n
  • Maximum Wi-Fi Speed: Up to 144 Mbps
  • Security: WEP, WPA, WPA2 encryption with MAC filtering
  • Operating Modes: AP, Client, Repeater, Bridge

Hardware System

  • CPU: Industrial-grade 32-bit processor
  • Memory: 16 MB Flash (expandable), 128 MB DDR
  • Operating System: Embedded Linux

Interfaces & Ports

  • WAN Port: 1 × 10/100 Mbps Ethernet (RJ45)
  • LAN Ports: 4 × 10/100 Mbps Ethernet (RJ45)
  • Serial Ports: RS232 or RS485/RS422 with 15 kV ESD protection
  • SIM Slot: Standard SIM card slot with ESD protection
  • Antenna Interface: Cellular SMA female, Wi-Fi SMA male

Power Specifications

  • Input Voltage: DC 5–36 V
  • Standard Power Supply: DC 12 V / 1.5 A
  • Power Consumption: Standby ~300 mA @12 VDC, Communication up to ~550 mA @12 VDC

Mechanical & Environmental

  • Enclosure: Metal housing, IP30 protection
  • Dimensions: 207 × 135 × 28 mm
  • Weight: Approximately 790 g
  • Operating Temperature: -35°C to +75°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: Up to 95% non-condensing

Network & Security Features

  • Protocols: TCP/IP, UDP, ICMP, HTTP, FTP, SNMP, SSH
  • VPN Support: IPsec, PPTP, L2TP, GRE
  • Security: Firewall, NAT, DMZ, MAC filtering
  • Management: Web UI, CLI, remote firmware upgrade

Shipping & Delivery

  • Orders are usually processed within 1–2 business days.
  • Standard delivery time is 5–7 business days, depending on your location.
  • Tracking details will be shared once your order is shipped.
  • For detailed shipping terms, please refer to our Shipping Policy.

Resources

User Manual
Quick Start Guide
Technical Datasheet
Installation Tutorial Video
GUI Installation
Driver Installation
Onboarding with CAN Device
Installation Tutorial Video
GUI Installation
Driver Installation
Onboarding with CAN Device

Frequently Asked Questions

Quick answers to common questions about our products

What is an LTE Wireless Router used for?

An LTE Wireless Router is used to provide reliable cellular-based internet connectivity for industrial and IoT applications where wired broadband is unavailable or unreliable.

Does this router support industrial serial devices?

Yes, the router includes RS232 and RS485/RS422 serial interfaces, allowing direct connection to PLCs, sensors, meters, and other industrial equipment.

Can the router operate continuously in harsh environments?

Yes, it features an industrial-grade CPU, metal enclosure, watchdog protection, and wide temperature support for stable 24/7 operation.

Is VPN supported for secure remote access?

Yes, the router supports IPsec, PPTP, L2TP, and GRE VPN protocols for secure data transmission and remote access.

How is the router powered?

The router supports a wide DC input range from 5V to 36V, making it suitable for various industrial power systems.

How is the router installed?

The router can be mounted on a control panel, wall, or DIN rail using standard industrial mounting accessories.

Can the router automatically reconnect if the network drops?

Yes, it includes auto-recovery mechanisms such as link detection, watchdog monitoring, and automatic redial to maintain connectivity.
