Edge Computing IoT Gateway

Starting from ₹22,500

Edge Computing Gateway is an industrial IoT gateway with 5G/4G connectivity, edge processing, multi-protocol support, and secure data transmission for smart cities, industrial automation, and infrastructure monitoring.

Need bulk pricing or technical details? Contact us

KEY FEATURES

Wireless
Edge Computing
Remote Control
Cellular
Industrial Automation

Description

The Edge Computing Gateway is an industrial-grade IoT gateway designed for secure data acquisition, edge processing, and real-time communication across industrial and smart infrastructure environments. Built with a high-performance industrial processor and real-time operating system, it enables seamless integration of sensors, PLCs, controllers, and field devices into modern IoT platforms. Supporting 5G, 4G LTE, wired Ethernet, and optional Wi-Fi connectivity, the gateway ensures reliable and uninterrupted communication with intelligent failover mechanisms. With extensive protocol compatibility including Modbus RTU, Modbus TCP, IEC 60870-5-104, MQTT, and HTTPS, it is ideal for smart cities, energy systems, industrial automation, and remote asset monitoring. The rugged metal enclosure, wide operating temperature range, flexible DIN-rail or wall-mount installation, and advanced security features make the Edge Computing Gateway suitable for 24/7 deployment in harsh industrial environments.

Specification

Cellular & Network Connectivity

Cellular Network: 5G NR, 4G LTE with automatic fallback
SIM Support: Dual SIM with intelligent switching
Ethernet: 1× WAN + 4× LAN (10/100/1000 Mbps)
Wi-Fi: Optional 2.4GHz Wi-Fi (AP / Client / Bridge)
VPN: PPTP, L2TP, IPsec (Client & Server)

Edge Computing & Software

Processor: Industrial-grade 32-bit processor
Operating System: Embedded real-time OS
Edge Computing: Local data processing and protocol conversion
Secondary Development: Python and C SDK supported
Management: Web UI, CLI, and remote management tools

Industrial Protocol Support

Serial Protocols: Modbus RTU
Ethernet Protocols: Modbus TCP, IEC 60870-5-104
IoT Protocols: MQTT (SSL/TLS), HTTP, HTTPS, WebSocket

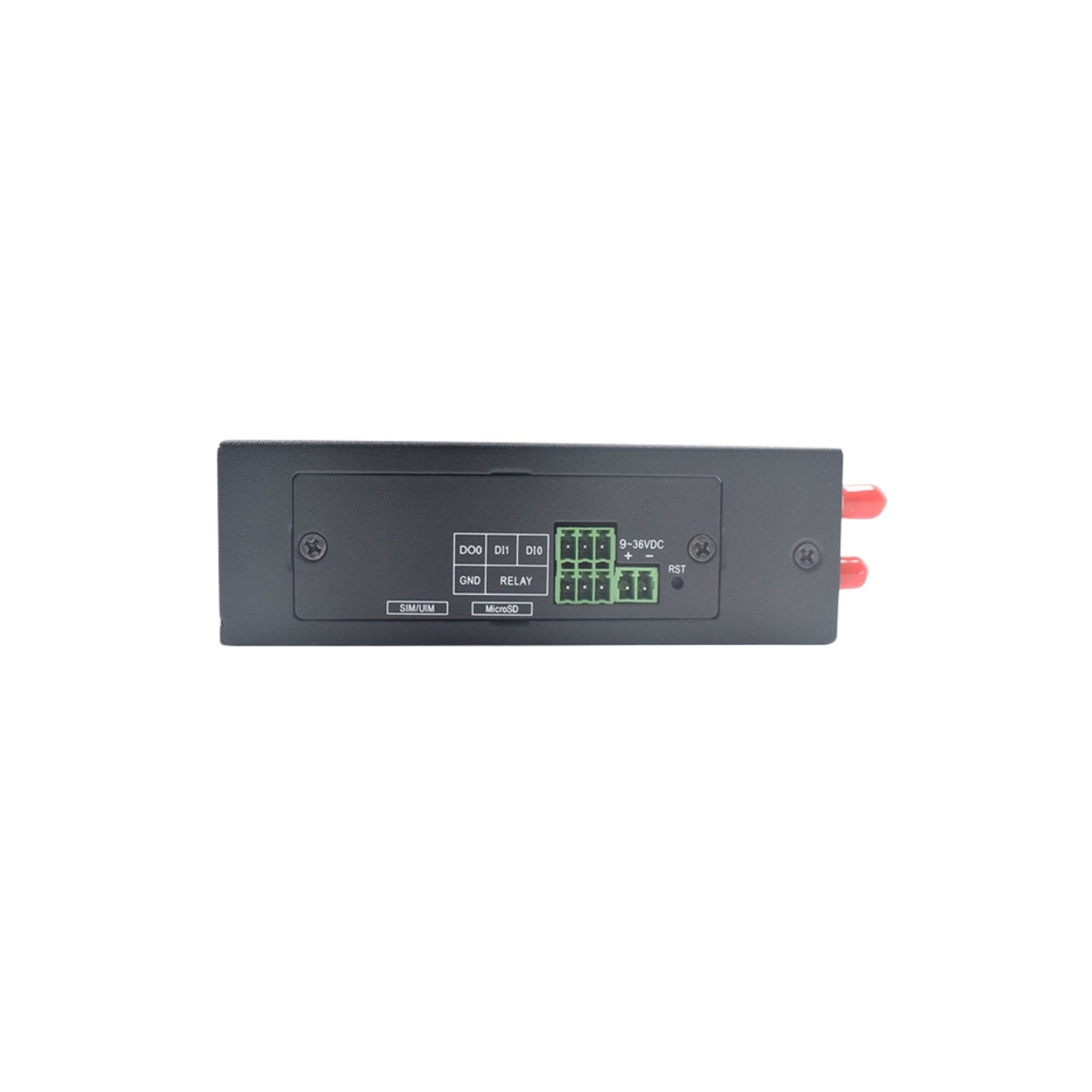

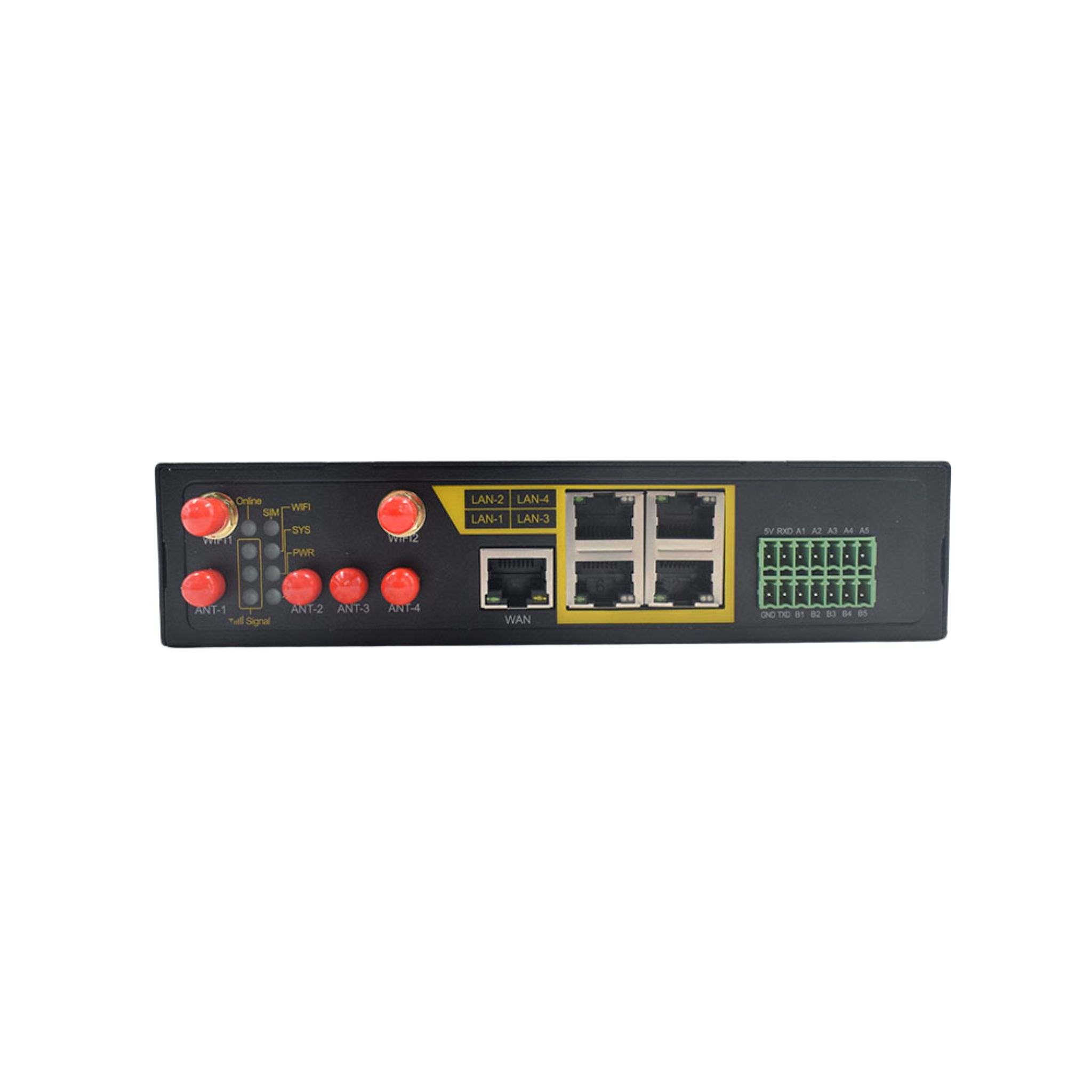

Interfaces & I/O

RS232: 1 port
RS485: 5 ports (one shared with RS232)
Digital Inputs: 2 channels
Digital Outputs: 1 channel
Relay Output: 1A @ 250VAC / 30VDC
USB: USB 3.0 for storage and expansion

Security & Reliability

Encryption: DES, 3DES
Firewall: Built-in firewall with NAT and VLAN
System Protection: Watchdog auto-recovery
Electrical Protection: 15KV ESD protection
Isolation: Hardware isolation for Ethernet and serial ports

Power & Environmental

Power Input: DC 9V to 36V
Typical Supply: DC 12V
Operating Temperature: -35°C to +75°C
Storage Temperature: -40°C to +85°C
Humidity: Up to 95% non-condensing

Mechanical & Installation

Enclosure: Industrial metal housing
Protection Class: IP30
Mounting Options: DIN-rail or wall-mounted
Installation Location: Control panels and industrial cabinets

Shipping & Delivery

Orders are usually processed within 1–2 business days.
Standard delivery time is 5–7 business days, depending on your location.
Tracking details will be shared once your order is shipped.
For detailed shipping terms, please refer to our Shipping Policy.

Resources

User Manual

Quick Start Guide

Technical Datasheet

Installation Tutorial Video

GUI Installation

Driver Installation

Onboarding with CAN Device

Installation Tutorial Video

GUI Installation

Driver Installation

Onboarding with CAN Device

Frequently Asked Questions

Quick answers to common questions about our products

What is an Edge Computing Gateway?

An Edge Computing Gateway is an industrial IoT device that collects, processes, and securely transmits data from field devices to cloud or enterprise systems.

Does the Edge Computing Gateway support 5G connectivity?

Yes, it supports 5G NR and 4G LTE networks with automatic failover for reliable communication.

Which industrial protocols are supported?

The gateway supports Modbus RTU, Modbus TCP, IEC 60870-5-104, MQTT, HTTP, and HTTPS protocols.

Is the gateway suitable for industrial environments?

Yes, it is designed with a rugged metal enclosure, wide temperature range, and electrical isolation for industrial deployments.

How can the Edge Computing Gateway be installed?

It supports DIN-rail mounting and wall-mounted installation inside industrial panels or cabinets.

Can custom applications be deployed on the gateway?

Yes, the gateway supports Python and C SDKs for custom edge computing and application development.
