Smart Light Pole Gateway
Smart Light Pole Gateway is an industrial-grade IoT gateway designed for smart city infrastructure, enabling 4G/5G connectivity, intelligent lighting control, edge data processing, and secure integration of urban devices such as cameras, sensors, EV chargers, and environmental monitors.
Need bulk pricing or technical details? Contact us
KEY FEATURES
- Wireless
- Smart Light Pole
- Remote Control
- Cellular
- Smart city
- Automation
Description
The Smart Light Pole Gateway is a high-performance industrial IoT gateway purpose-built for smart city and intelligent lighting infrastructure. Designed for deployment inside smart light poles, it acts as a centralized communication and control hub for urban devices such as LED lighting systems, surveillance cameras, environmental sensors, EV charging modules, public Wi-Fi, and emergency systems. Powered by an industrial-grade 32-bit processor and equipped with robust 4G/5G cellular connectivity, Wi-Fi, Ethernet, serial interfaces, and SFP fiber ports, the gateway enables reliable long-distance data transmission and edge intelligence in demanding outdoor environments. Its metal enclosure, multi-layer electrical protection, watchdog mechanisms, and anti-drop networking design ensure 24/7 stability for mission-critical smart city applications. The gateway supports advanced networking features including VPN, VLAN, firewall, NAT, QoS, SNMP, and remote web-based management, allowing seamless integration with city command centers and cloud platforms. With support for multiple power outputs, POE, relay control, GPS, digital and analog I/O, and flexible installation options, the Smart Light Pole Gateway provides a scalable and future-ready foundation for smart poles, highways, municipal lighting, parks, and urban infrastructure projects.
Specification
Cellular & Network Connectivity
- Cellular Network: 5G NR, 4G LTE with automatic fallback
- SIM Support: Dual SIM with intelligent switching
- Ethernet: 1× WAN + 4× LAN (10/100/1000 Mbps)
- Wi-Fi: Optional 2.4GHz Wi-Fi (AP / Client mode)
- VPN: IPsec, L2TP, PPTP
Edge Computing & System
- Processor: Industrial-grade high-performance processor
- Operating System: Embedded real-time OS
- Edge Computing: Local data processing and protocol conversion
- Remote Management: Web UI, CLI, remote firmware upgrade
Industrial Protocol Support
- IoT Protocols: MQTT, HTTP, HTTPS, WebSocket
- Industrial Protocols: Modbus RTU, Modbus TCP
- Data Encryption: SSL/TLS secure communication

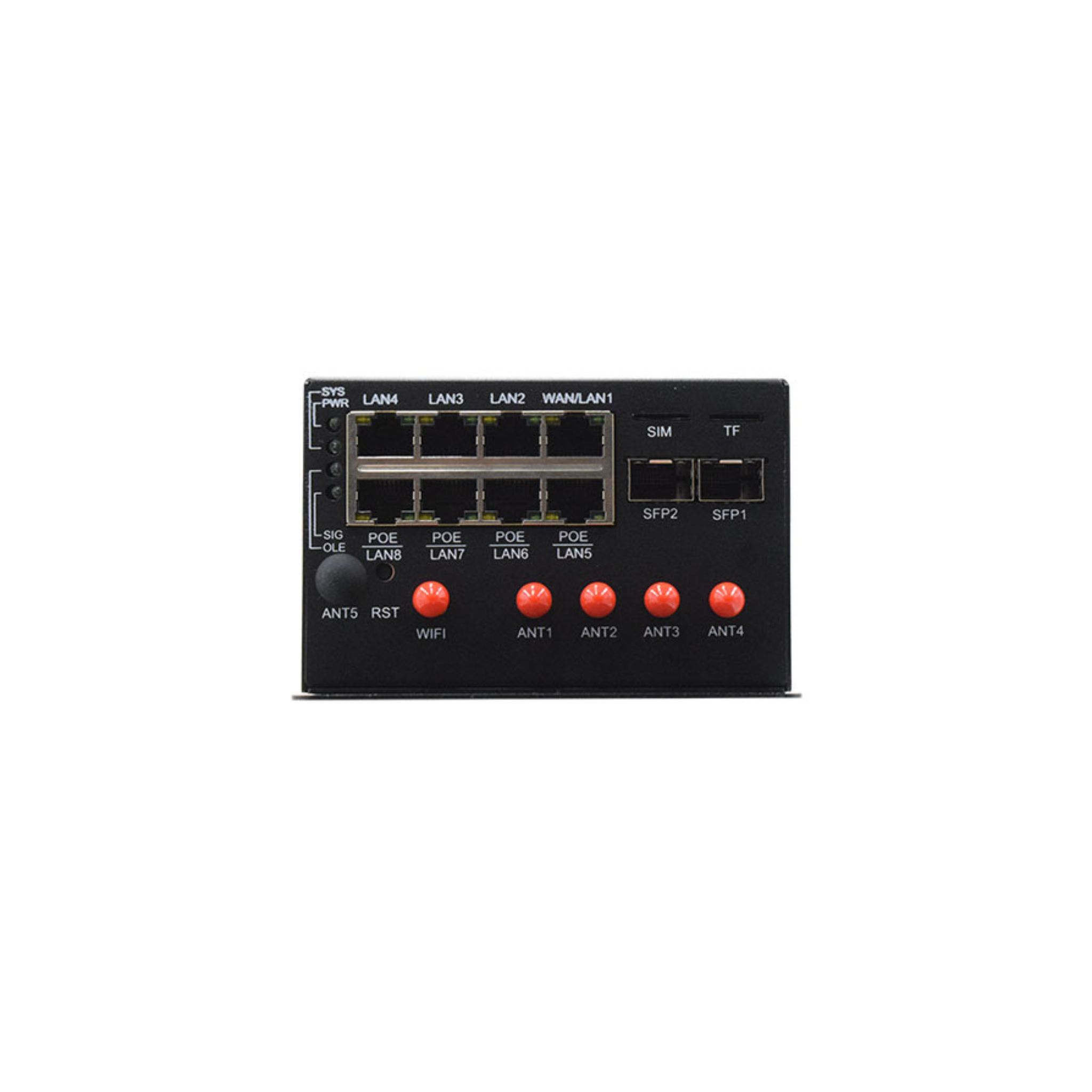

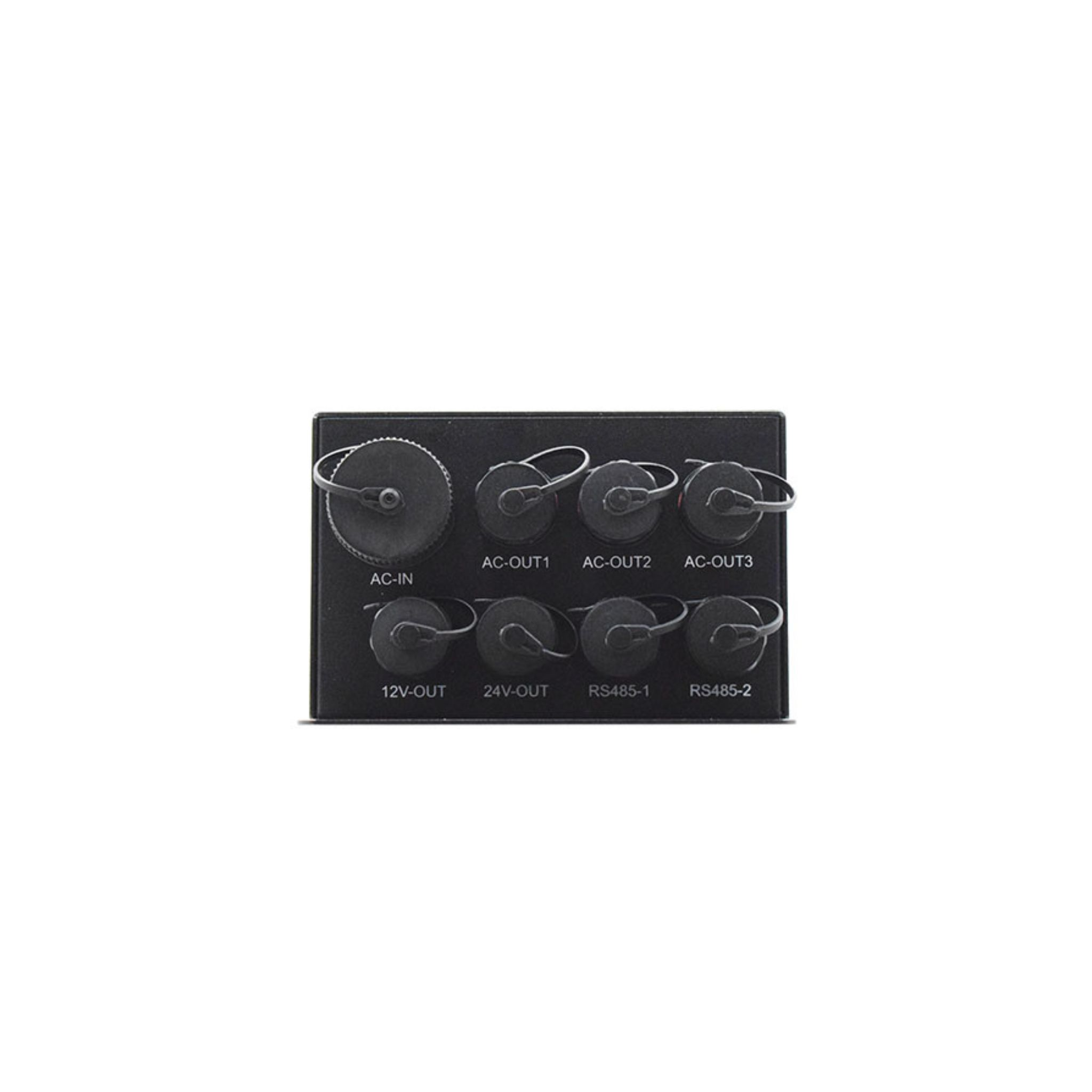

Interfaces & I/O
- RS232: 1 port
- RS485: 2 ports
- Digital Inputs: 4 channels
- Digital Outputs: 2 channels
- USB: USB 2.0 for maintenance and expansion
Security & Protection
- Firewall: Built-in firewall with NAT
- System Protection: Hardware watchdog with auto recovery
- Electrical Protection: ESD and surge protection
- Authentication: Multi-level user access control
Power & Environmental
- Power Input: DC 9V to 36V
- Typical Supply: DC 12V / 24V
- Operating Temperature: -35°C to +75°C
- Storage Temperature: -40°C to +85°C
- Humidity: Up to 95% non-condensing
Mechanical & Installation
- Enclosure: Rugged industrial metal housing
- Protection Class: IP65 (outdoor rated)
- Mounting Options: Pole-mounted or wall-mounted
- Installation Location: Smart street light poles and roadside cabinets
Shipping & Delivery
- Orders are usually processed within 1–2 business days.
- Standard delivery time is 5–7 business days, depending on your location.
- Tracking details will be shared once your order is shipped.
- For detailed shipping terms, please refer to our Shipping Policy.
Frequently Asked Questions
Quick answers to common questions about our products
What is a Smart Light Pole Gateway?
A Smart Light Pole Gateway is an industrial IoT gateway installed inside smart light poles to provide centralized connectivity, control, and data processing for urban devices such as lighting systems, cameras, sensors, and EV chargers.
Does the Smart Light Pole Gateway support 4G and 5G networks?
Yes. The gateway supports both 4G LTE and 5G NR cellular networks with wide global band compatibility, ensuring reliable connectivity for smart city deployments.
What devices can be connected to this gateway?
It can connect LED lighting controllers, surveillance cameras, environmental sensors, public Wi-Fi access points, alarms, EV charging modules, GPS devices, and other smart city equipment.
Is the gateway suitable for outdoor and harsh environments?
Yes. It features an industrial metal enclosure, wide operating temperature range, electrical isolation, ESD protection, and anti-drop network mechanisms for stable outdoor operation.
How is the Smart Light Pole Gateway installed?
The gateway is designed for installation inside smart light poles or roadside cabinets. It supports multiple mounting options and integrates directly with pole power and connected devices.
Can the gateway remotely control lighting and equipment?
Yes. With relay outputs, digital I/O, and power output channels, the gateway enables remote switching, monitoring, and control of lighting systems and connected equipment.
Does it support remote management and firmware updates?
Yes. The gateway supports local and remote web-based management, SNMP, CLI access, and secure remote firmware upgrades.
Is the gateway secure for smart city networks?
Yes. It includes VPN support, firewall, VLAN, access control, encrypted communication, and multi-layer electrical and network security features.
What smart city applications is this gateway best suited for?
It is ideal for smart street lighting, municipal infrastructure, highways, parks, smart campuses, environmental monitoring, surveillance systems, and integrated smart city platforms.
