CAN Protocol Self Learning Kit v4
Master complex CAN Bus networks with the CAN Self-Learning Kit V4. Built for professionals to simulate multi-node CAN systems, advanced diagnostics, and embedded development.
Need bulk pricing or technical details? Contact us
KEY FEATURES
- CAN Bus Simplified
- Deep Learning
- Plug & Play
Description

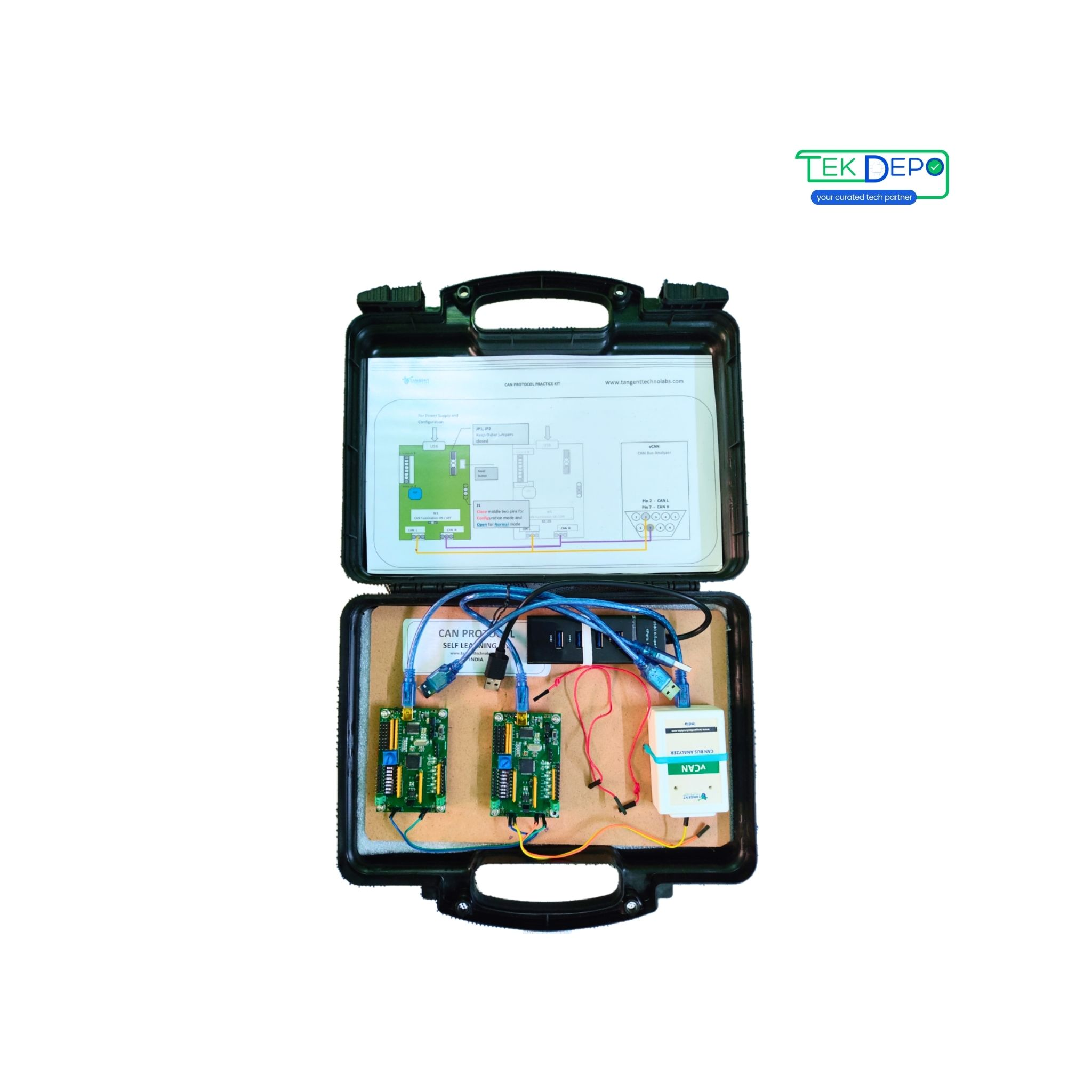

The CAN Self-Learning Kit V4 is the most comprehensive and powerful version, designed for advanced learners and professionals working with complex CAN Bus networks. Featuring multiple configurable CAN nodes along with a programmable node, this kit enables full-scale CAN network simulation similar to modern automotive and industrial environments. With complete support for CAN 2.0A and CAN 2.0B protocols, users can perform advanced diagnostics, fault injection, network load testing, and custom firmware development. The kit supports GUI-based configuration, API access, and real-time CAN traffic analysis for professional-grade experimentation. Version 4 is ideal for automotive R&D teams, embedded system engineers, training institutions, and cybersecurity researchers looking to master CAN Bus communication, network behavior analysis, and advanced automotive embedded system development.
Specification

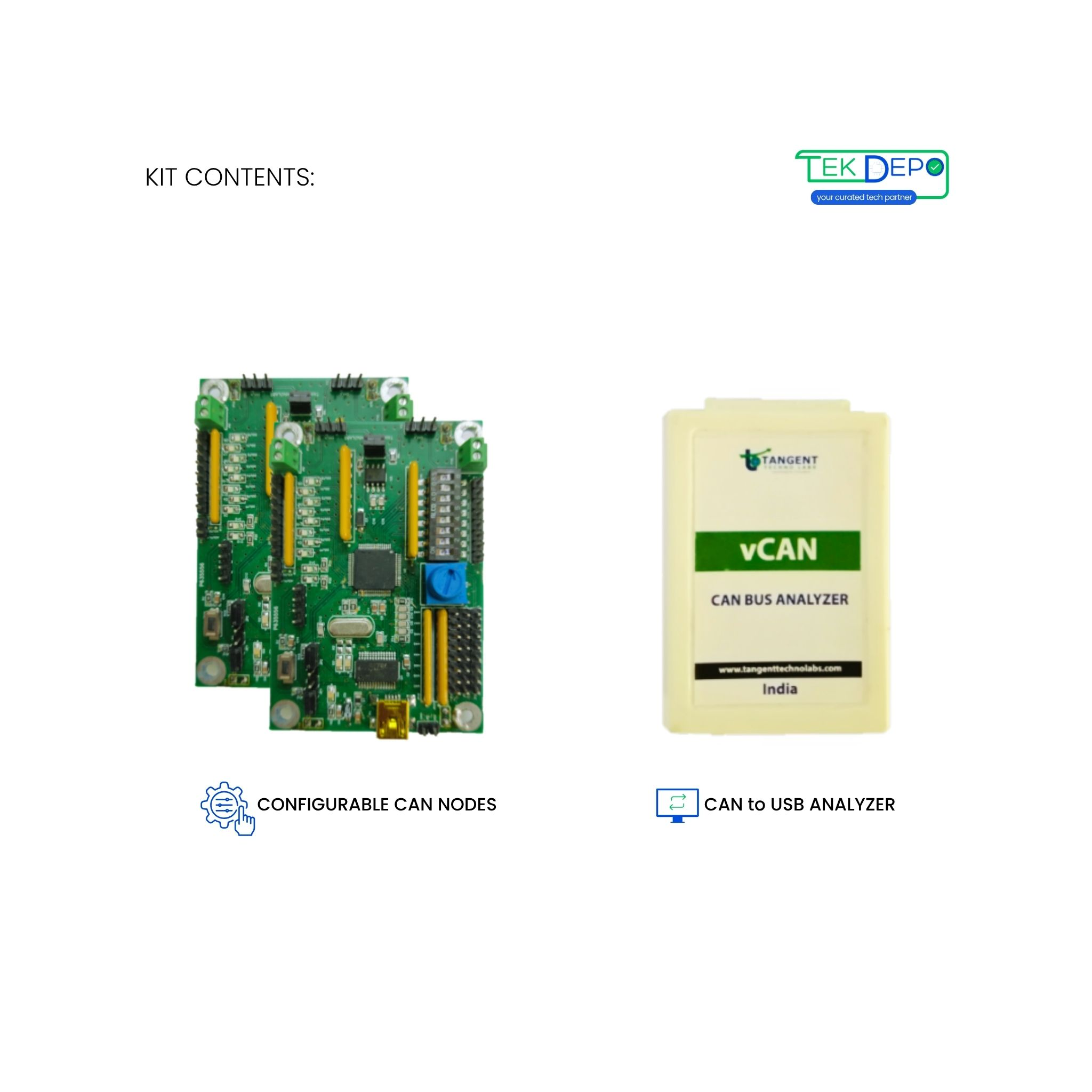

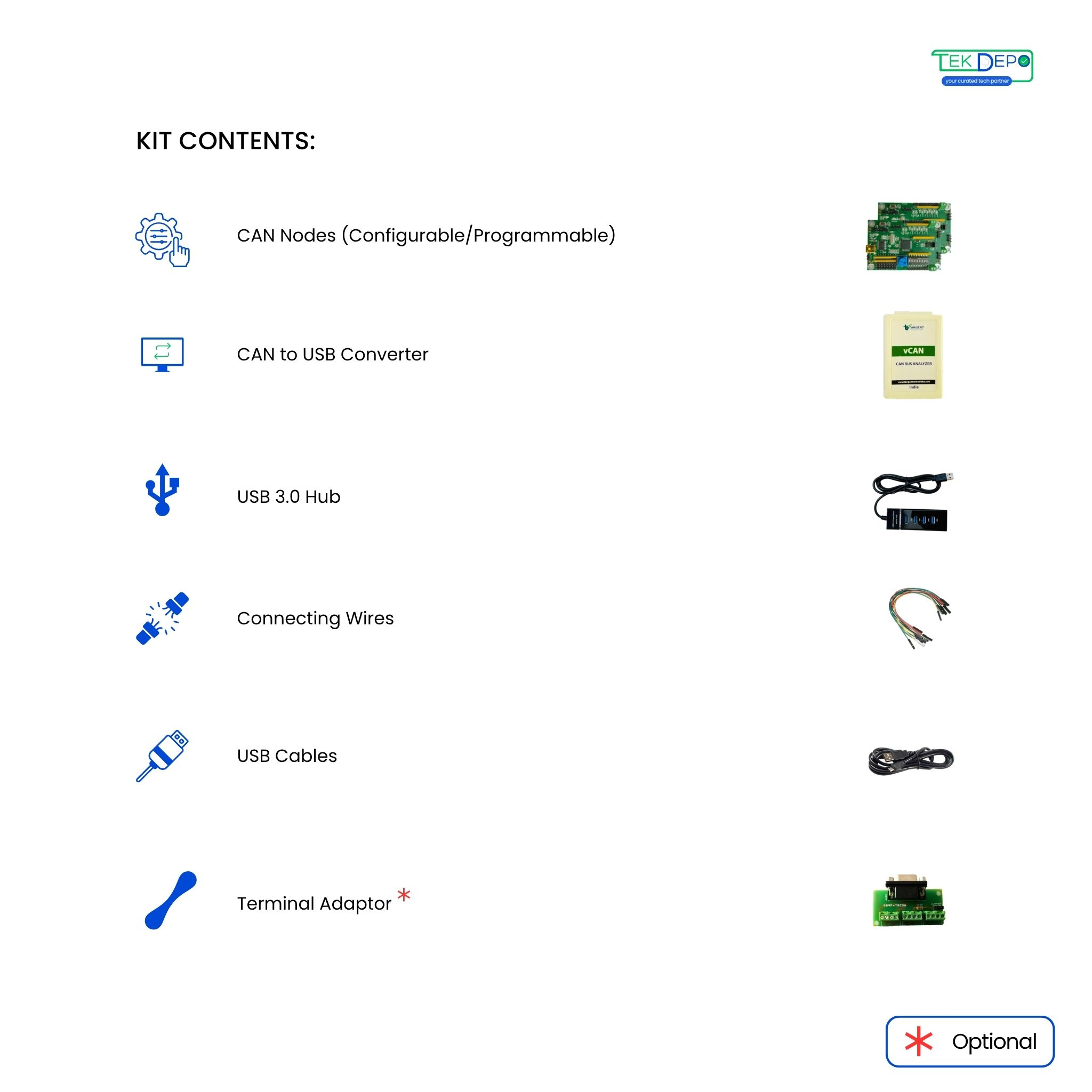

Kit Contents
- CAN Nodes ( 2 Configurable & 1 Programmable )
- CAN Bus to USB Converter
- USB Cables
- USB 3.0 Hub
- Connecting wires & jumpers (removable)
- Termination adapter (optional)
Technical Specifications
- Power Supply: Powered through USB
- PC Communication: Compatible with USB 2.0
- Inputs: Digital – 8; Analog – 4
- Outputs: Digital – 8; Analog – 2
- CAN Communication: On-board CAN bus connection, 3-pin each
- Baud Rate - CAN Bus: Supports up to 1 MBPS
- Communication Mode: Bidirectional
- CAN Bus Version Support: Compliant with CAN Specifications 2.0A and 2.0B
- Indicators: LEDs for configuration, digital & analog output
- Operating Condition: Operating temperature range from -20 to 85 °C
Key Features
- GUI – Unimod (configuration software) and CAN Bus application
- Inbuilt debugger for custom C code development and debugging
- GUI-based CAN configurations including baud rate, filters, message IDs, and analog & digital I/Os
Applications
- CAN bus fault testing
- CAN 2.0A and CAN 2.0B monitoring
- CAN bus learning and hands-on practice
- CAN bus network analysis and troubleshooting
Shipping & Delivery
- Orders are usually processed within 1–2 business days.
- Standard delivery time is 5–7 business days, depending on your location.
- Tracking details will be shared once your order is shipped.
- For detailed shipping terms, please refer to our Shipping Policy.
Frequently Asked Questions
Quick answers to common questions about our products
What is the CAN Self Learning Kit (Version 4)?
Version 4 is the most advanced CAN Self Learning Kit, featuring two configurable CAN nodes and one programmable CAN node for full-scale CAN network experimentation.
Who is Version 4 intended for?
This version is ideal for professionals, R&D engineers, training institutes, and advanced learners working on real-world CAN network analysis and testing.
What learning advantages does Version 4 offer?
With three CAN nodes, users can build complex CAN networks, test message arbitration, simulate faults, and develop custom CAN applications.
Does this kit support CAN diagnostics and troubleshooting?
Yes, Version 4 is well suited for CAN diagnostics, fault injection, message filtering, and network analysis.
Is the kit compatible with CAN 2.0A and 2.0B?
Yes, the kit is fully compliant with CAN 2.0A and CAN 2.0B specifications.
Is technical support available after purchase?
Yes, TEK DEPO provides technical support, setup guidance, and software assistance for all kit versions.
