Anchor Series Rechargeable Datalogger
Anchor Series Rechargeable Datalogger
1 Year Battery Life | CFR 21 11 | Plug & Play | 4G LTE
25 in stock
Couldn't load pickup availability
- Global Shipping
- Product Support
- CFR 21 11
Share
Collapsible content
Product Description
Anchor series is an advanced asset monitoring solution that delivers real-time visibility into critical stationary points of your supply chain, such as warehouse chambers, cold storage units, and other temperature or humidity sensitive environments. With the monitoring web platform or mobile app, you can access data anytime, gain actionable insights, and receive early-warning alerts for excursions.

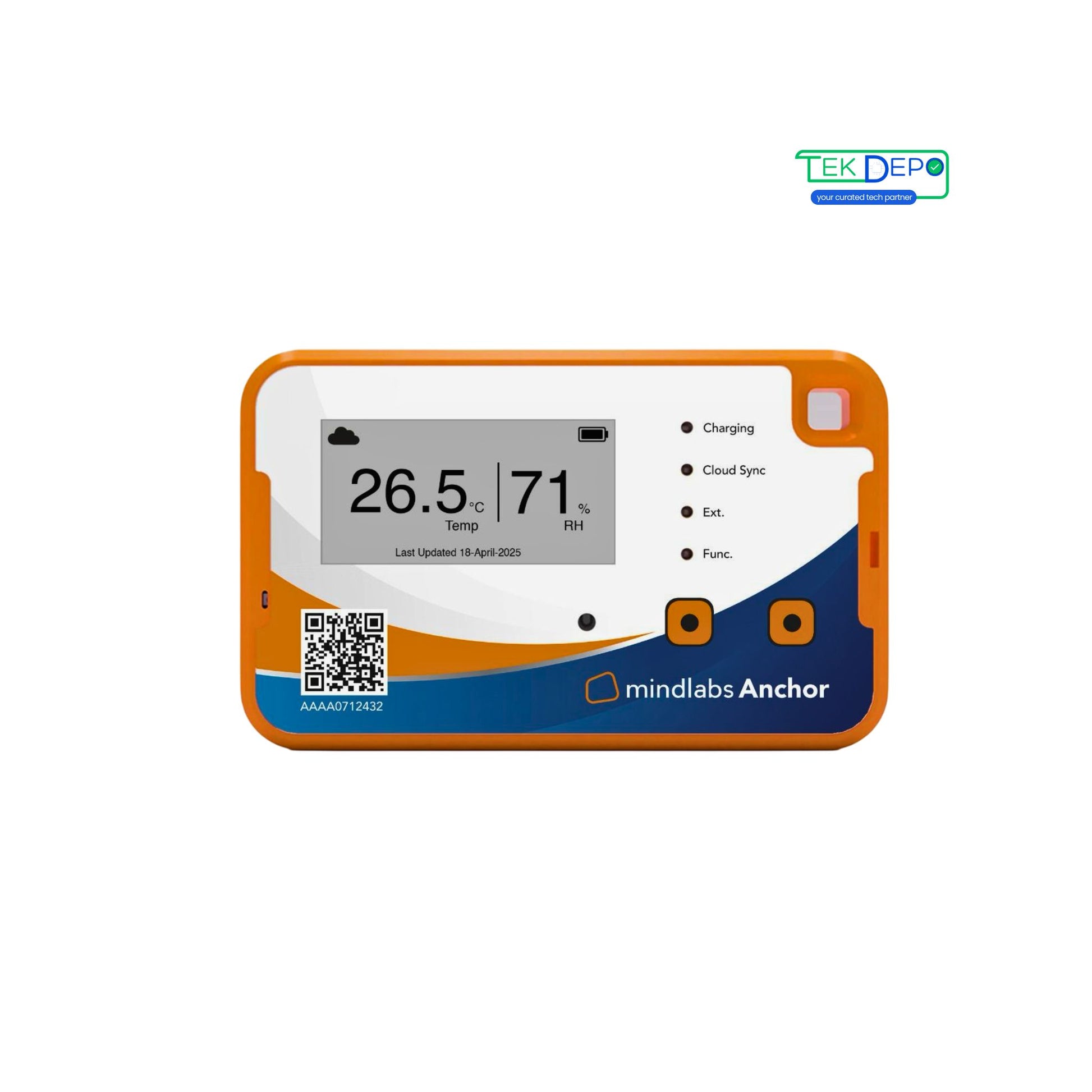

The Anchor device is equipped with high precision digital sensors, reliable network connectivity with Bluetooth fallback, an intuitive always-on display, and a long-lasting 1 year battery life. Its functionality can be further enhanced with optional accessories, including an alarm hooter or an external probe for monitoring extreme temperature conditions.
Product Specification
Key Features:
- Email, SMS & App Notifications
- PDF & CSV Reports
- 21 CFR Part 11 Compliant
- Validated High Precision Sensors
- E-ink Always On Display
- 24/7 Remote Monitoring
- One Year Battery Life
Typical Applications:
- Blood banks
- Storage refrigerators
- Warehouses
- Cold warehouse
- Chillers
- Food storage units
- Industrial setups
- Server rooms
Technical Specifications:
Condition Sensors:
- Temperature Range: -30°C to 60°C
- Temperature Accuracy: ±0.5°C
- Temperature Resolution: 0.1°C
- Humidity Range: 0 to 100% RH
- Humidity Accuracy: ±3% RH
- Humidity Resolution: 1% RH
- Calibration: Factory calibrated
Monitoring Platform
- Available on: Web, Android, iOS
- Alerts: App push notifications, emails, SMS
- Features: Intuitive dashboards, warnings & violation notifications, PDF & CSV reports, access management, audit logs, CAPA system, location tagging.
- Collection Interval: 10 min default (min configurable 5 min)
- Sending Interval: 60 min default (min configurable 30 min).
- Offline backup capacity: 90 Days
Inbuilt Battery
- Type: Li-ion, 8500 mAh, Rechargeable
- Runtime: 12 months on single charge (at default config)
- Charge: USB-C 5V, 12 hours for full charge
- Probe
- Temperature Range: -100°C to 100°C
- Temperature Accuracy: ±0.5°C
- Temperature Resolution: 0.5°C
- Certifications: EN12830, CE, FCC, CFR 21 11
Connectivity
- Cellular: 4G (CAT-1), 2G, 190+ countries
- Wi-Fi: 2.4GHz
- Mobile App: Wireless sync via bluetooth
Mechanical
- Dimensions: 130 mm x 60 mm x 25 mm (L x W x D)
- Weight: 180g
- Protection Class : IP64
- Mounting: Strong magnetic holder or cable zip tie
- Display: E-Ink, always on display
Condition sensors and accessories
- Temperature
- Humidity
- Probe
- Hooter
