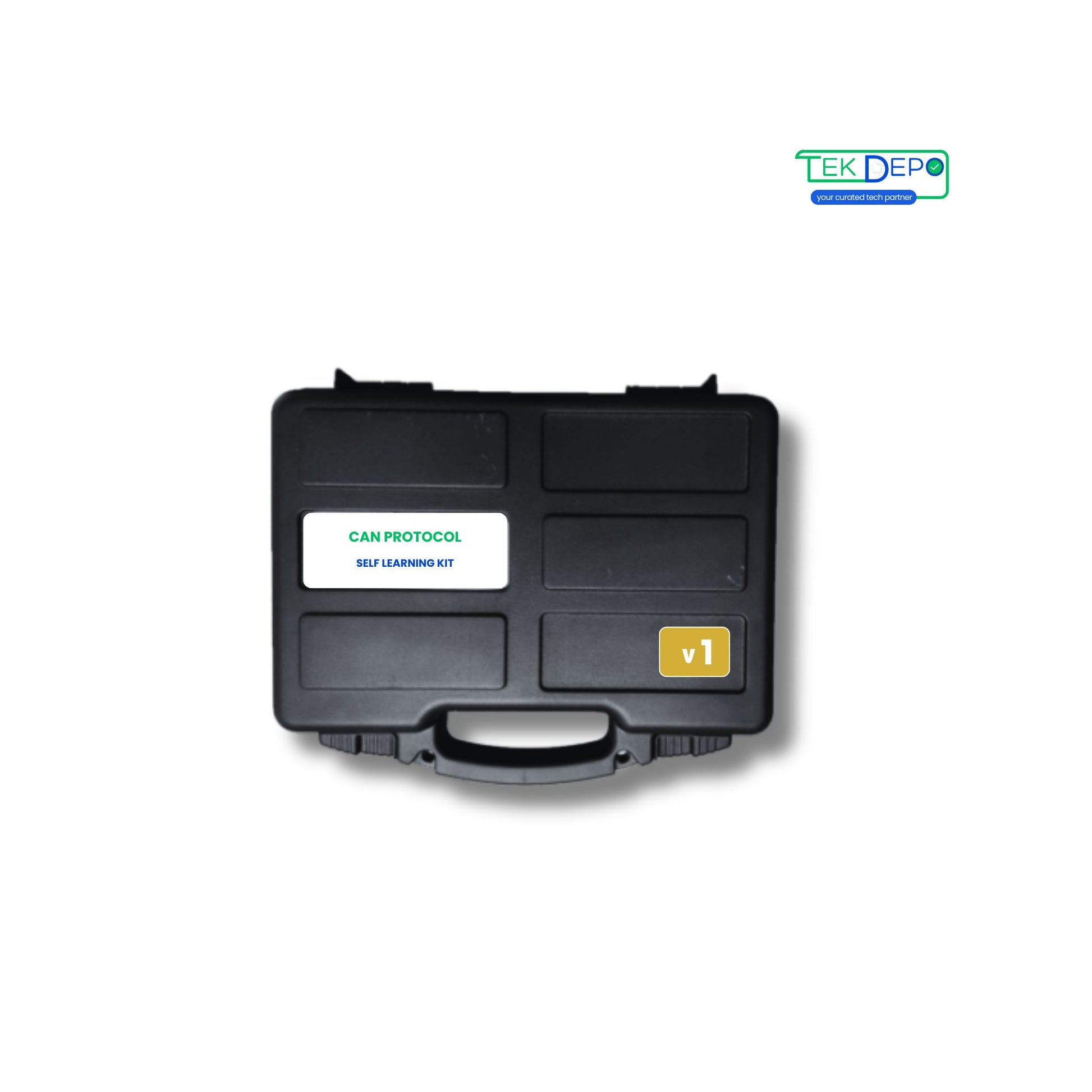

CAN Protocol Self Learning Kit

CAN Protocol Self Learning Kit

CAN Bus Simplified | Learn in seconds | Plug & Play

Rs. 22,490.00
Rs. 22,490.00
Sale Sold out
Shipping calculated at checkout.

13 in stock
  • Global Shipping
  • Product Support
  • CAN 2.0A & 2.0B
View full details

Product Description

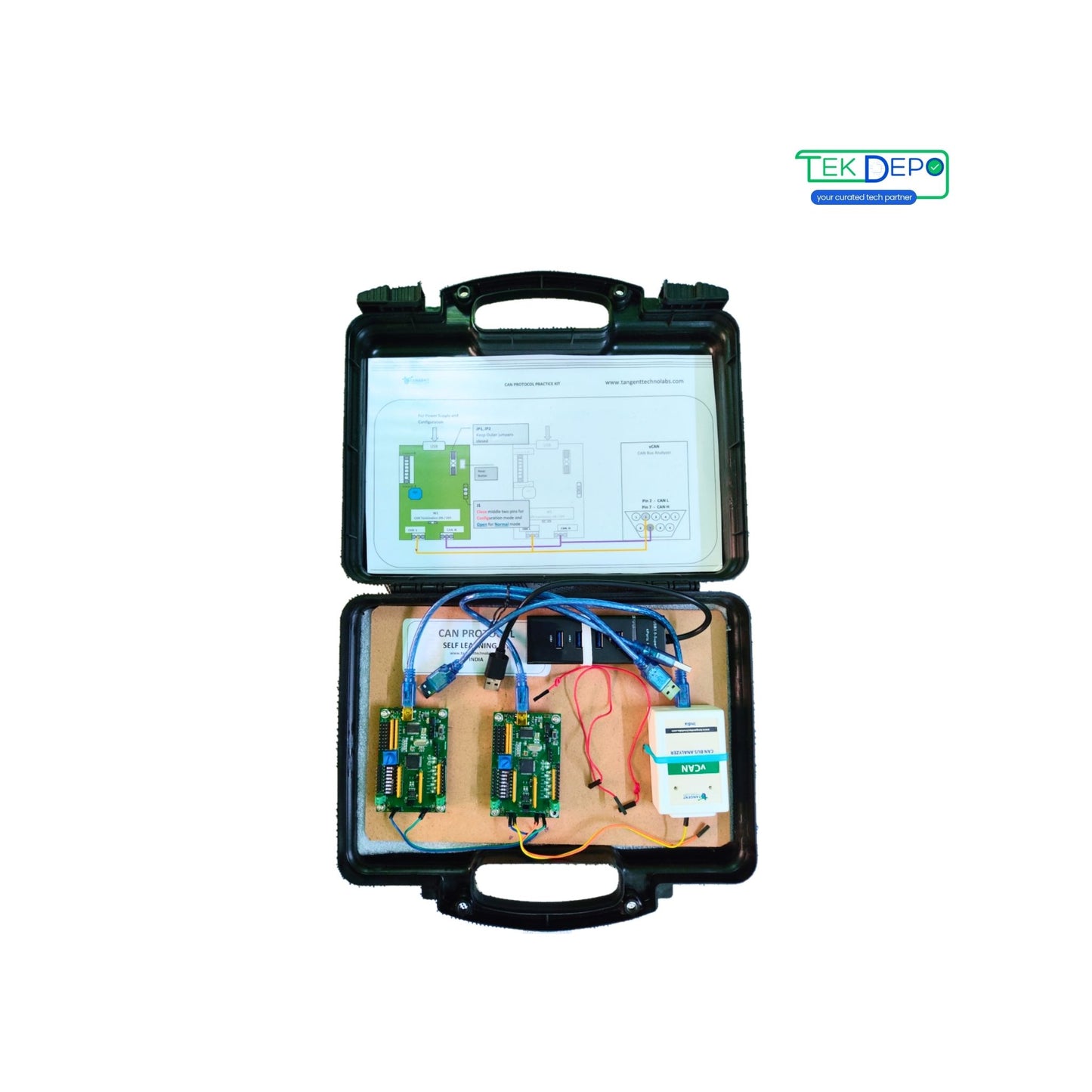

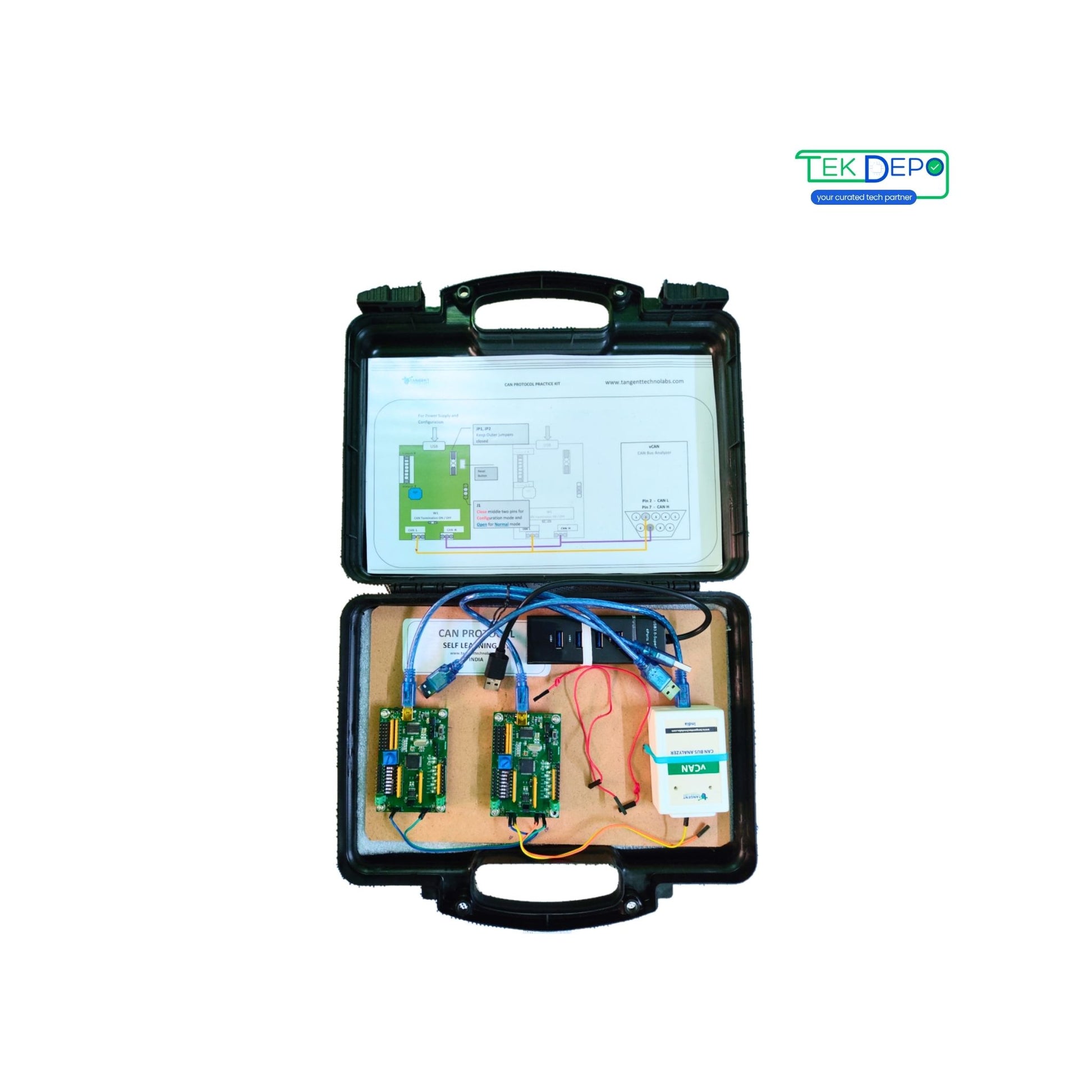

The CAN Self-Learning Kit is an integrated package that allows enthusiastic learners to study the CAN Bus Protocol in depth. It provides hands-on experience in setting up a basic CAN Bus network and analyzing its traffic. This kit is ideal for both beginners and professionals looking to deepen their understanding of automotive embedded systems, automotive communication protocols, and automotive cybersecurity.

Product Features

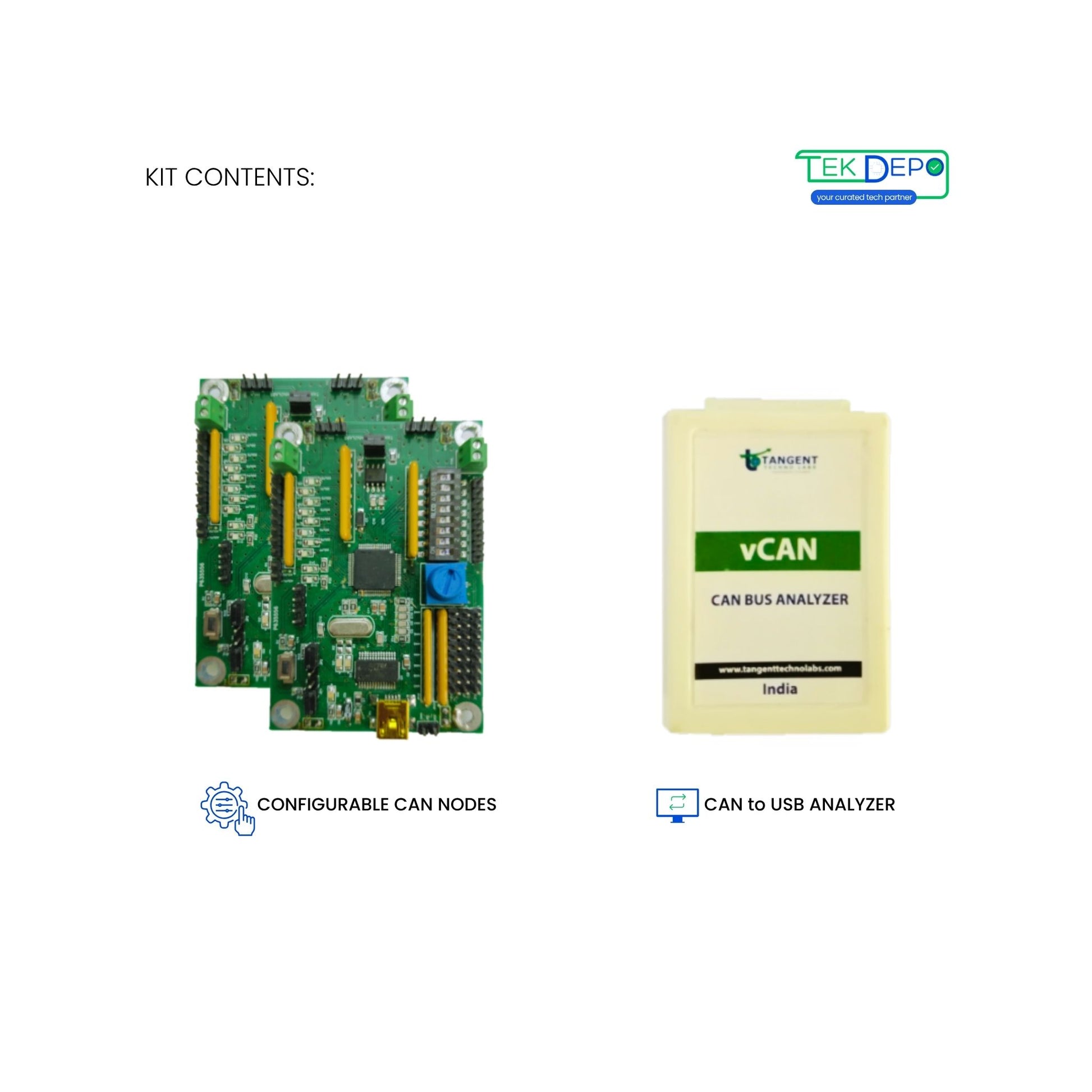

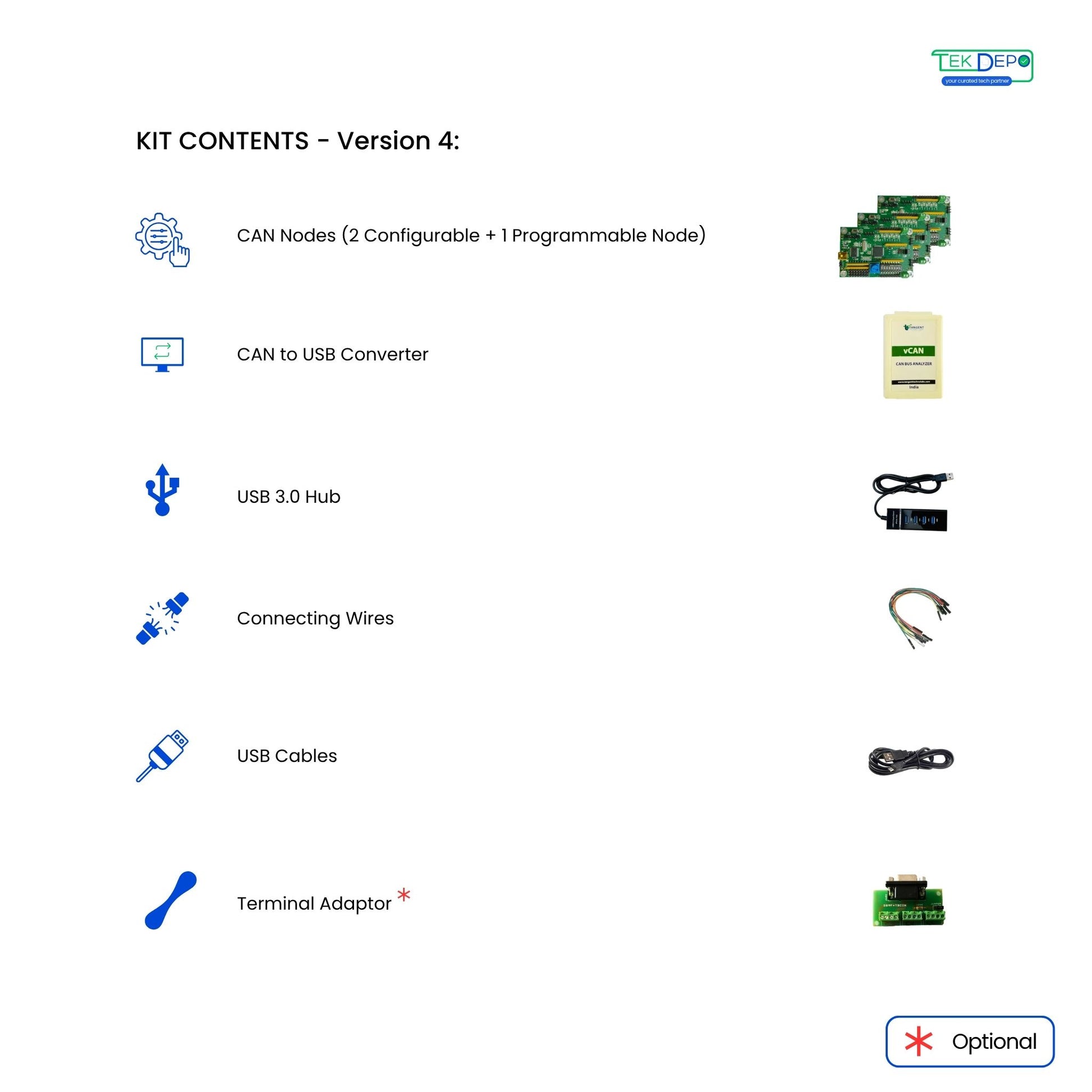

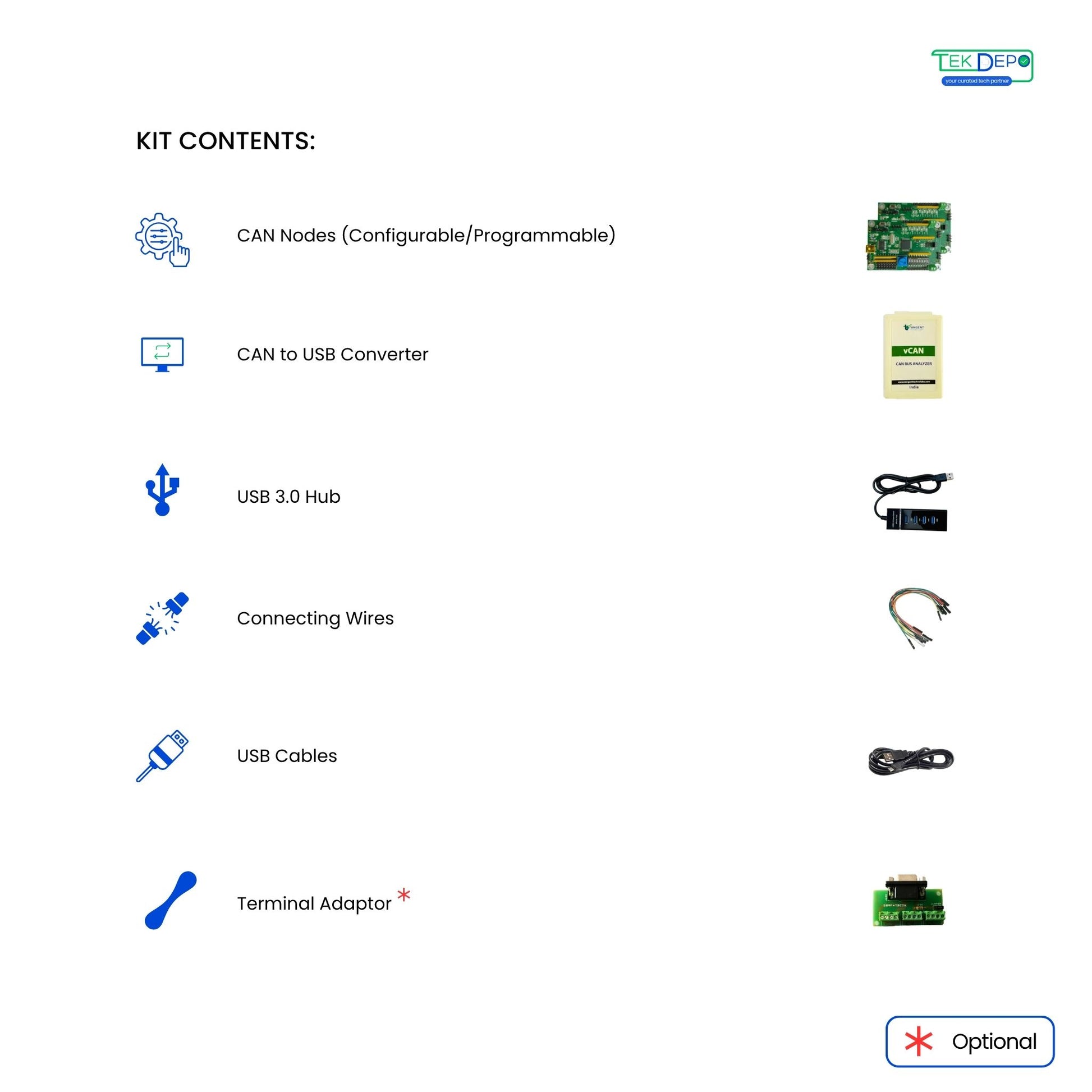

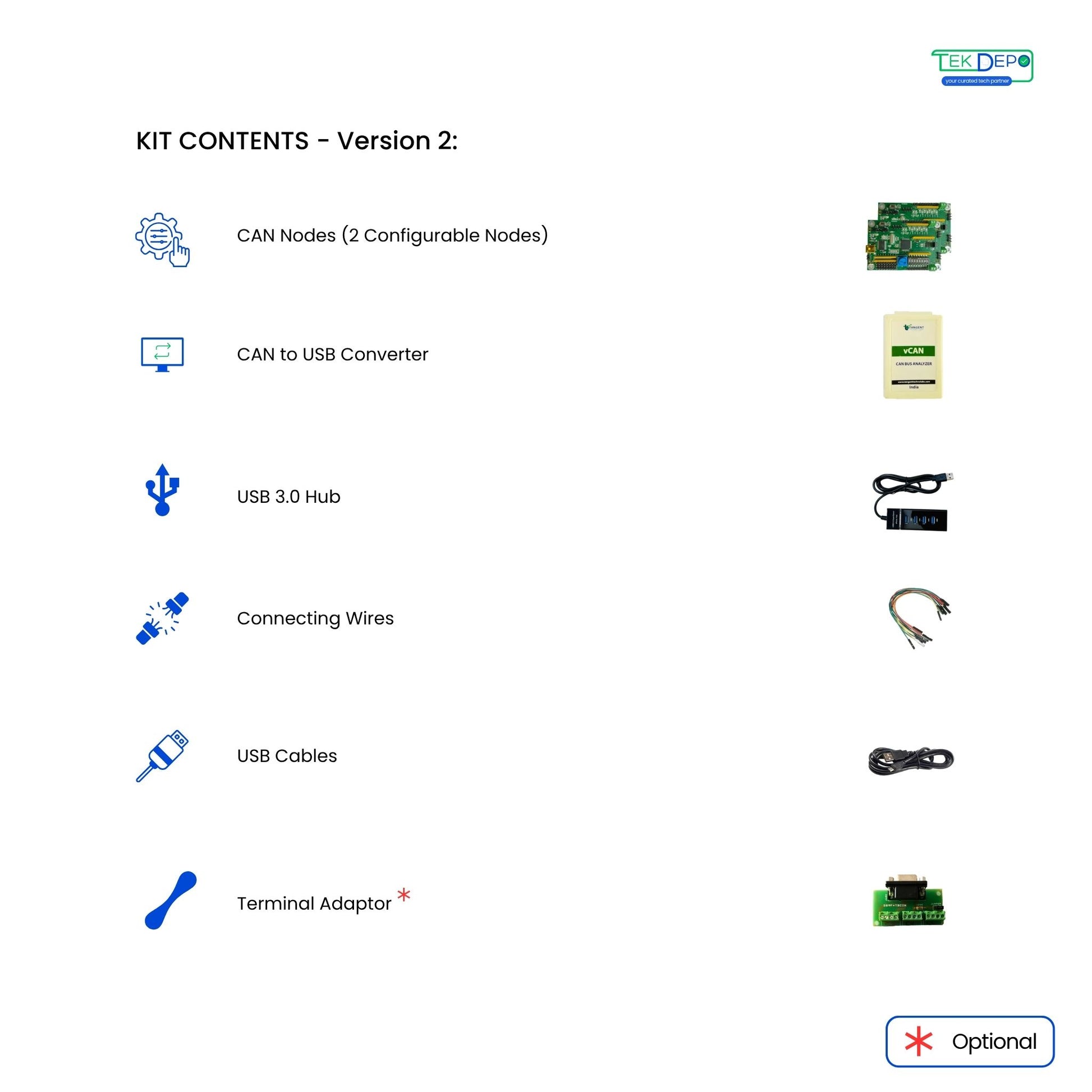

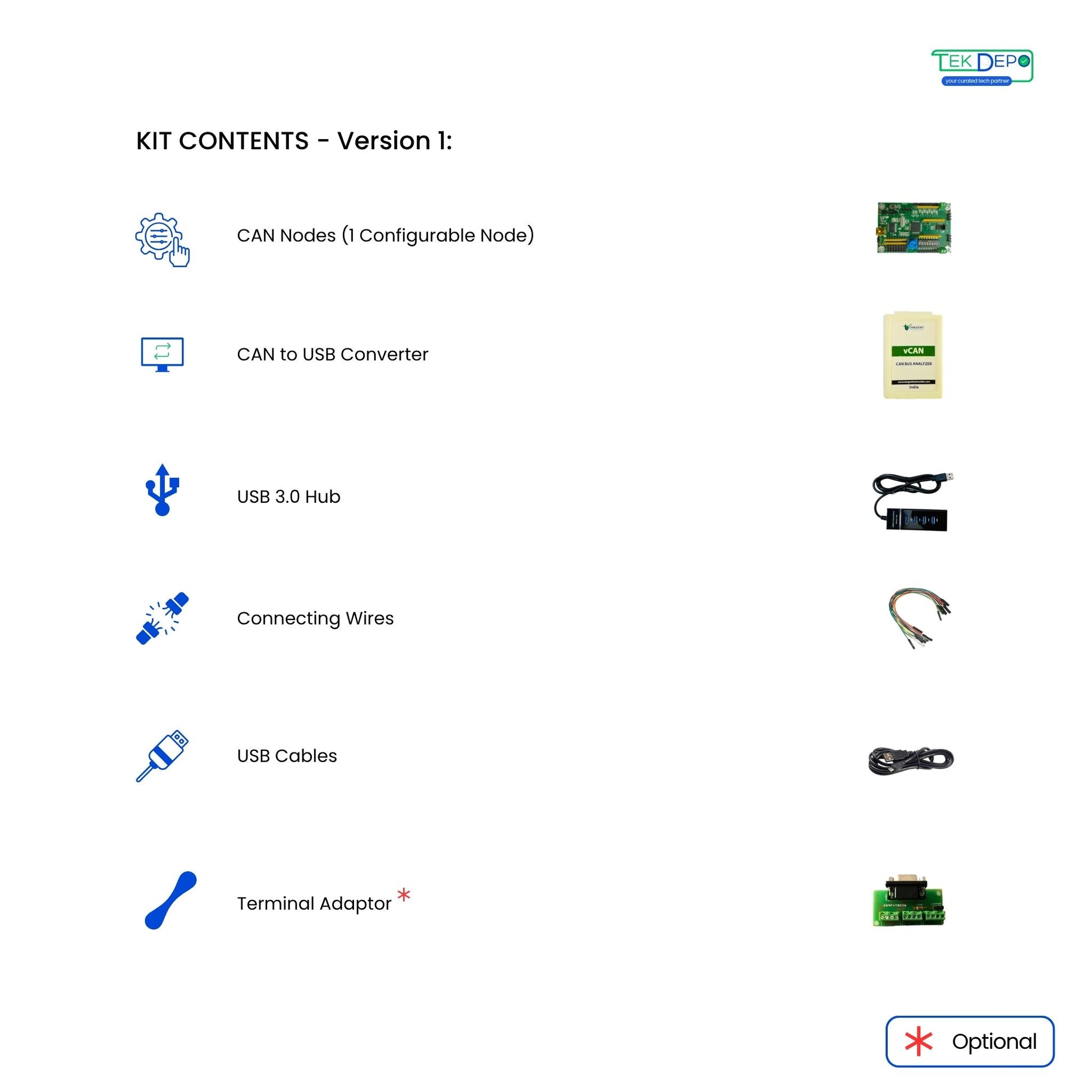

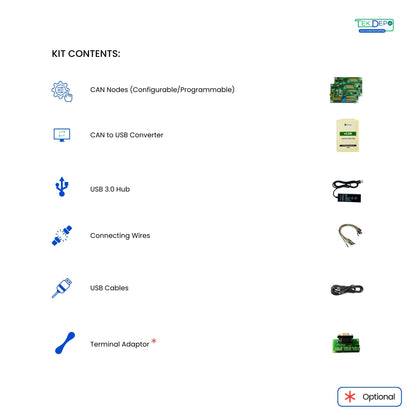

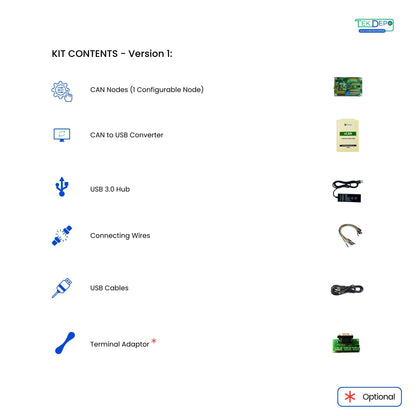

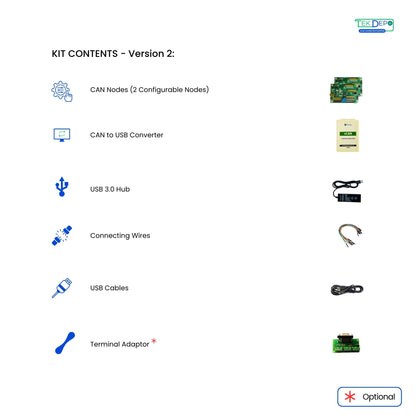

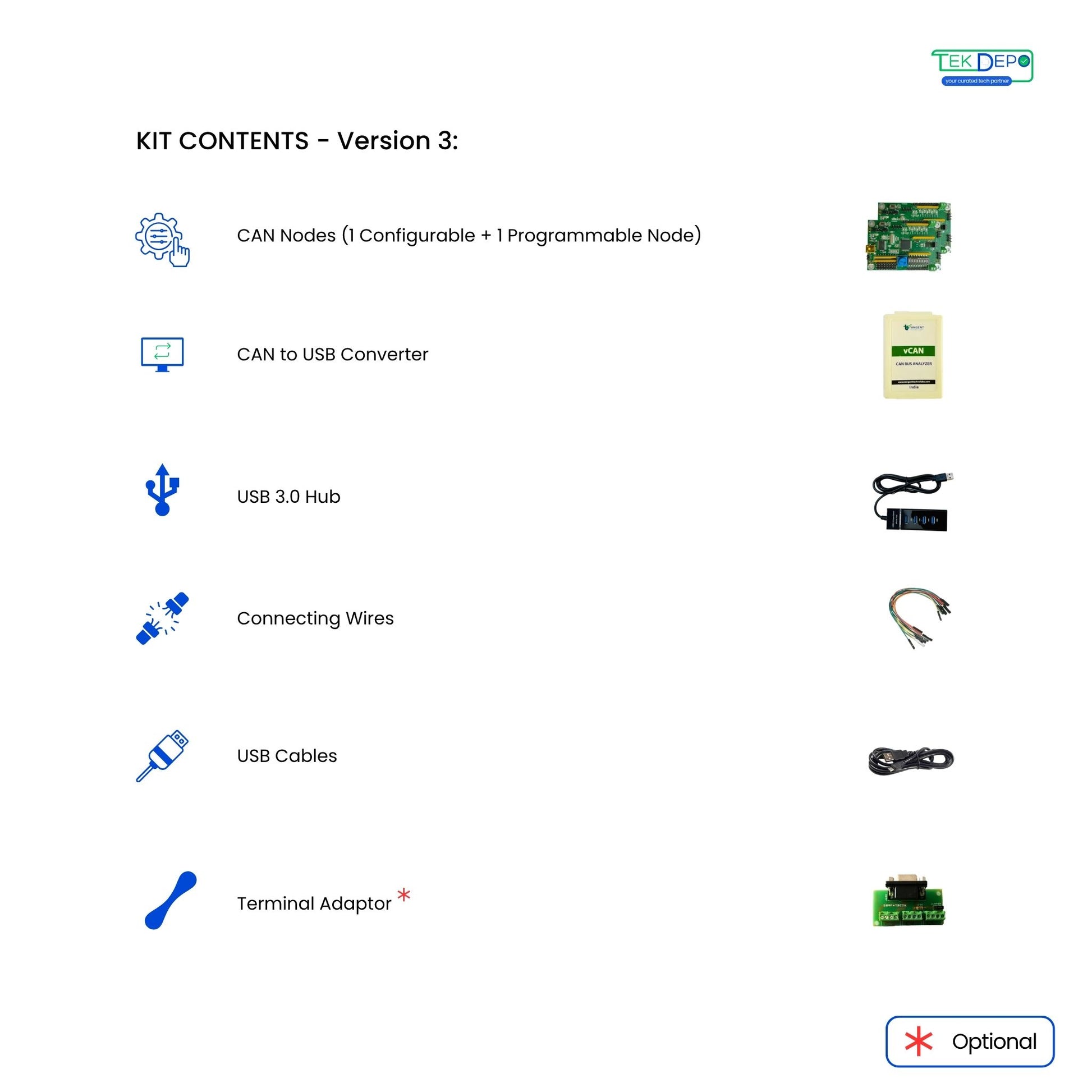

Kit Contents:

  •     CAN Nodes (Configurable/Programmable- *subject to kit version)
  •     CAN Bus to USB Converter
  •     USB Cables
  •     USB 3.0 Hub
  •     Connecting Wires & Jumpers (Removable)
  •     Termination Adapter (Optional)

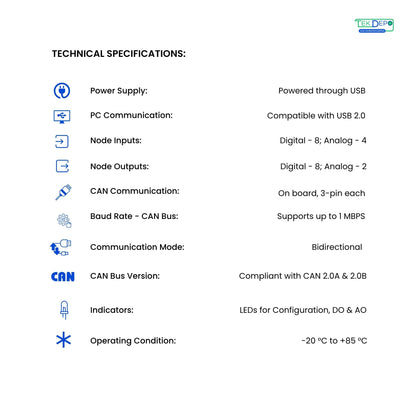

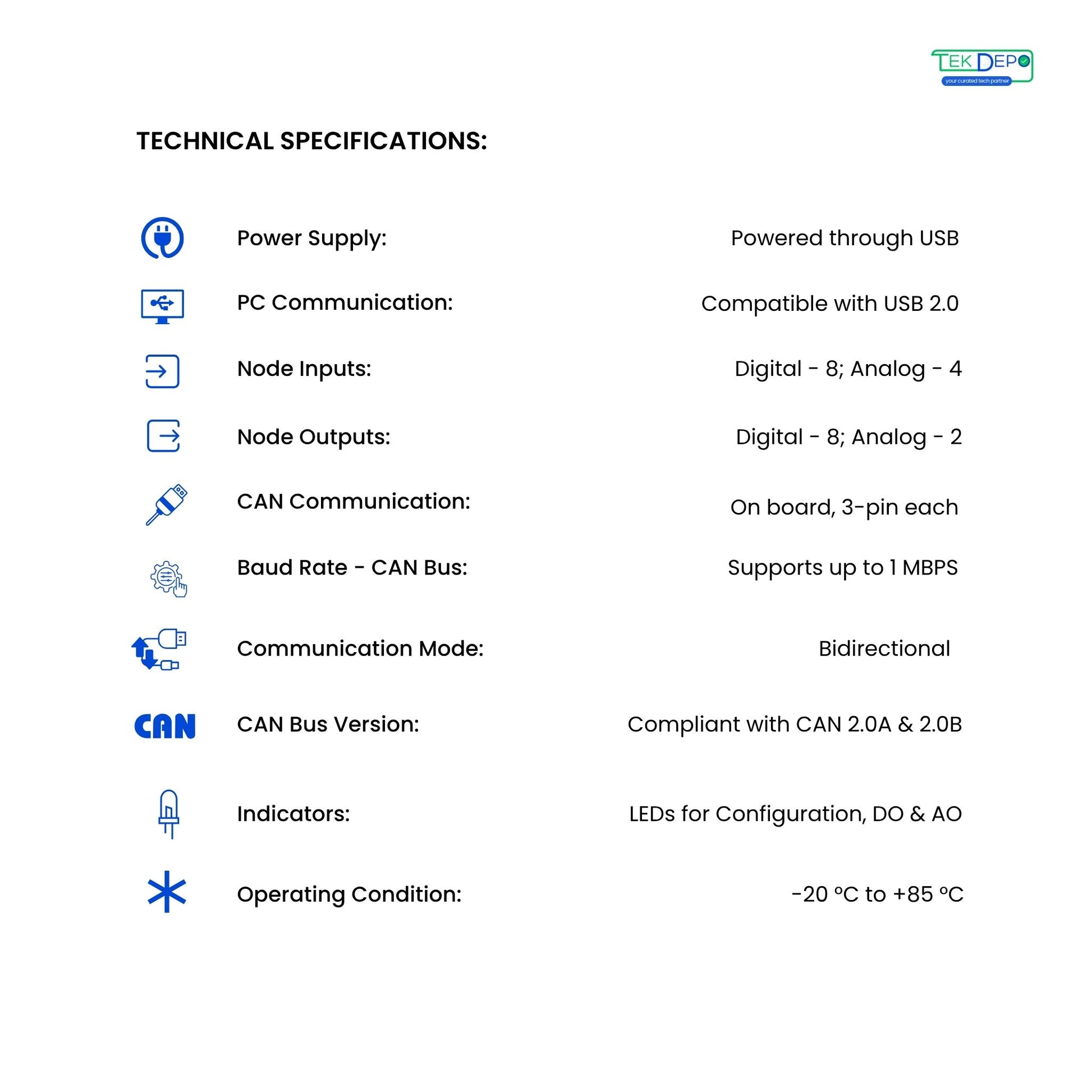

Technical Specifications:

  •     Power Supply:  Powered through USB.
  •     PC Communication:  Compatible with USB 2.0.
  •     Inputs: Digital - 8; Analog - 4.
  •     Outputs: Digital - 8; Analog - 2.
  •     CAN Communication: on board CAN bus connection, 3-pin each.
  •     Baud Rate - CAN Bus: Supports up to 1 MBPS.
  •     Communication Mode: Bidirectional.
  •     CAN Bus version Support: Compliant with CAN Specifications 2.0A and 2.0B.
  •     Indicators: LEDs for Configuration, Digital & Analog Output.
  •     Operating Condition: Operating temperature range from -20 to 85 °C.

Key Features:

  • GUI - Unimod (configuration SW) and CAN Bus application
  • Inbuilt debugger - For custom 'C' code development & debugging.
  • GUI CAN Configurations - baud rate, filters, message IDs, A&D I/Os.

Applications:

  • CAN Bus fault testing.
  • CAN 2.0A and CAN 2.0B monitoring.
  • CAN Bus learning & hands-on practice.
  • CAN Bus network analysis & troubleshooting.
