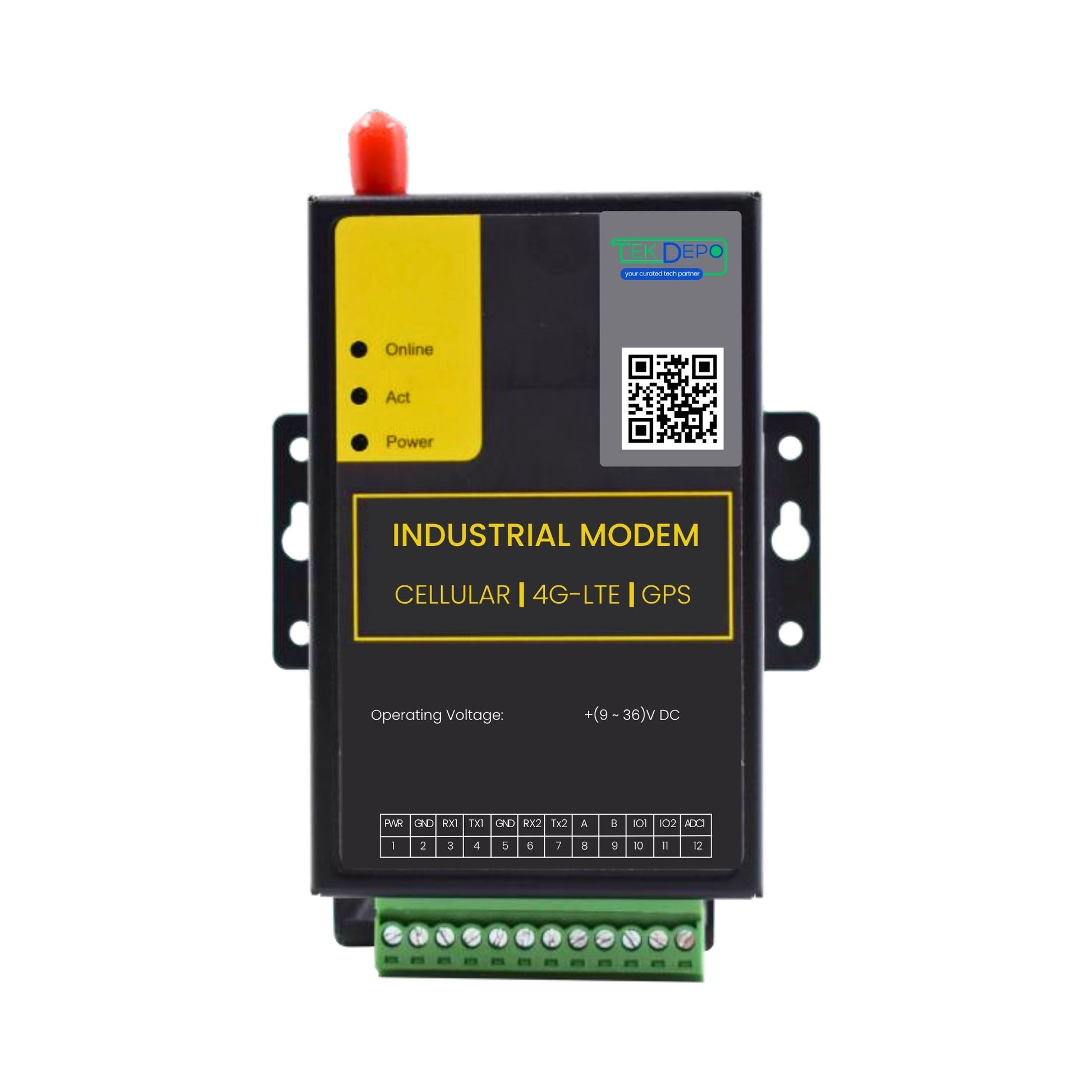

4G Industrial GPS Modem

4G Industrial GPS Modem

4G-LTE | GPS | IoT Terminal | Smart Factory | Asset Tracking

Rs. 9,251.00
Rs. 9,251.00
Sale Sold out
Shipping calculated at checkout.

20 in stock
  • Global Shipping
  • Product Support
  • Industry 4.0 Grade
View full details

Product Description

The 4G Industrial GPS IP Modem is a rugged, high-performance IoT wireless terminal engineered for stable, secure, and reliable data transmission in harsh industrial environments. Built with an industrial-grade GPS module and robust cellular connectivity, it ensures precise location tracking and uninterrupted communication for critical IoT and M2M applications.

  • Standard IoT ports: RS232 & RS485, 1 ADC & 2 I/O
  • Outer shell: metal, IP30 protection level
  • CPU: industrial-grade 32-bit processor & wireless module
  • System: watchdog design, complete mechanisms, stable operation
  • Function: wireless data transmission, GPS positioning
  • Applied scenario: M2M fields of the IoT industry, smart factory, etc.

The modem supports navigation updates up to 4Hz, timing accuracy of 30ns RMS, and configurable time pulse frequency (0.25Hz to 1000Hz), making it a powerful solution for smart grids, intelligent transportation systems, asset tracking, fleet management, and environmental monitoring.

Product Specification

Technical Specifications:

GPS - GPRS IP MODEM:

  • Standard and Band:
  1. EGSM 900/GSM 1800MHz
  2. GSM850/900/1800/1900MHz(Optional),
  3. Supports GSM phase 2/2+,
  4. GPRS class 10, class 12 (optional)
  • Bandwidth: 85.6Kbps
  • TX power:
  1. GSM850/900:<33dBm
  2. GSM1800/1900: <30dBm
  • RX sensitivity: <-107dBm

GPS - CDMA IP MODEM:

  • Standard and Band: CDMA2000 1xRTT 800MHz, 450MHz(optional)
  • Bandwidth: 153.6Kbps
  • TX power <30dBm
  • RX sensitivity <-104dBm

GPS - WCDMA IP MODEM:

  • Standard and Band:
  1. UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional)
  2. GSM 850/900/1800/1900MHz
  3. GPRS/EDGE CLASS 12
  • Bandwidth:
  1. DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
  2. HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
  3. HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
  4. UMTS: 384Kbps
  • TX power <24dBm
  • RX sensitivity <-109dBm

GPS - EVDO IP MODEM:

  • Standard and Band:
  1. CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), 450MHz(optional)
  2. CDMA2000 1X EVDO Rev B 800/1900MHz(optional)
  3. CDMA2000 1X RTT, IS-95 A/B
  • Bandwidth:
  1. EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
  2. EVDO Rev. B: Download speed 14.7Mbps, Upload speed 5.4Mbps (optional)
  • TX power <23dBm
  • RX sensitivity <-104dBm

GPS - TDD-LTE IP Modem:

  • Standard and Band:
  1. LTE TDD 2600/1900/2300MHz(Band 38/39/40), 800/1400/1800MHz(Band 27/61/62)(optional)
  2. TD-SCDMA 2010/1900MHz(A/F frequency band, Band 34/39)
  3. GSM /GPRS/EDGE 900/1800/1900MHz
  • Bandwidth:
  1. LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
  2. TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
  3. TD-HSPA: Download speed 2.2Mbps, Upload speed 2.2Mbps
  • TX power: <23dBm
  • RX sensitivity: <-97dBm

GPS - FDD-LTE IP Modem:

  • Standard and Band:
  1. LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
  2. DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz(optional)
  3. EDGE/GPRS/GSM 850/900/1800/1900MHz
  4. GPRS CLASS 10
  5. GPRS CLASS 12
  • Bandwidth:
  1. LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
  2. DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
  3. HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
  4. HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
  5. UMTS: 384Kbps
  • TX power: <23dBm
  • RX sensitivity: <-93.3dBm

GPS - LTE IP Modem:

  • Standard and Band:
  1. LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
  • Bandwidth:
  1. LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
  2. LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
  3. DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
  4. TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
  5. EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
  • TX power: <23dBm
  • RX sensitivity: <-93.3dBm

GPS Module:

  • GPS Module: Industrial GPS Module
  • Receiver Type:
  1. 50-Channel
  2. GPS L1（1575.42MHz）C/A Code
  3. SBAS：WAAS，EGNOS，MSAS，GAGAN
  4. Compatible： GALILEO
  • Maximum Navigation Update Rate: 4Hz
  • Horizontal position accuracy: Autonomous：2.5m CPE, SBAS：2.0m CPE
  • Tim to First Fix:
  1. Cold Start(Autonomous)：29S
  2. Warm Start(Autonomous)：29S
  3. Aided Starts：<1S
  4. Hot Starts(Autonomous)：<1S
  • Sensitivity:
  1. Tracking & Navigation：-160dBm
  2. Reacquisition：-160dBm
  3. Cold Start(Autonomous)：-144dBm
  • Timing Accuracy:
  1. RMS：30ns
  2. 99%：<60ns
  3. Granularity：21ns
  • Time Pulse Frequency: Configurable 0.25Hz to 1000Hz

Hardware System:

  • CPU: Industrial 32 bits CPU
  • FLASH: 512KB (Extendable)
  • SRAM: 256KB

Interface Type:

  • Serial:
  • 2 RS232 port and 1 RS485(or RS422) port, 15KV ESD protection
  • Data bits: 5, 6 ,7, 8
  • Stop bits: 1, 1.5, 2
  • Parity: none, even, odd, space, mark
  • Baud rate: 1200~230400 bps (110~600 bps optional)
  • Indicator: Power, ACT, Online
  • Antenna:
  1. Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
  2. GPS: Standard SMA female interface, 50 ohm, lighting protection(optional)
  • SIM/UIM: Standard 3V/1.8V user card interface, 15KV ESD protection
  • Power: Terminal block interface, reverse-voltage and overvoltage protection

Power Input:

Standard Power: DC 12V/0.5A

Power Range: DC 5~36V



Power Consumption(On various working modes):

  • Communication:
  1. 80~100mA@12VDC
  2. 170~220mA@5VDC
  • Standby:
  1. 45~55mA@12VDC
  2. 105~125mA@5VDC
  • Sleep:
  1. 3mA@12VDC
  2. 6mA@5VDC



Physical Characteristics:

  • Housing: Iron
  • Ingress: IP30 protection
  • Dimensions: 91x58.5x22 mm((excluding antennas and mountings))
  • Weight: 205g



Environmental Limits:

  • Operating Temperature: -35~+75ºC (-22~+167℉)
  • Storage Temperature: -40~+85ºC (-40~+185℉)
  • Operating Humidity: 95% ( unfreezing)



Ordering Information:

  • TD7916-G GPS+GPRS IP MODEM
  • TD7916-C GPS+CDMA IP MODEM
  • TD7916-W GPS+WCDMA IP MODEM
  • TD7916-V GPS+EVDO IP MODEM
  • TD7916-TL GPS+TDD-LTE IP MODEM
  • TD7916-FL GPS+FDD-LTE IP MODEM
  • TD7916-L GPS+LTE IP MODEM
