CAN to Serial Converters (CAN to RS485/RS232)

CAN to Serial Converters (CAN to RS485/RS232)

CAN to RS232 | CAN to RS485 | Plug & Play

Rs. 14,649.00
Rs. 14,649.00
Sale Sold out
Shipping calculated at checkout.

49 in stock
  • Global Shipping
  • Product Support
  • CAN 2.0A & 2.0B
View full details

Product Description

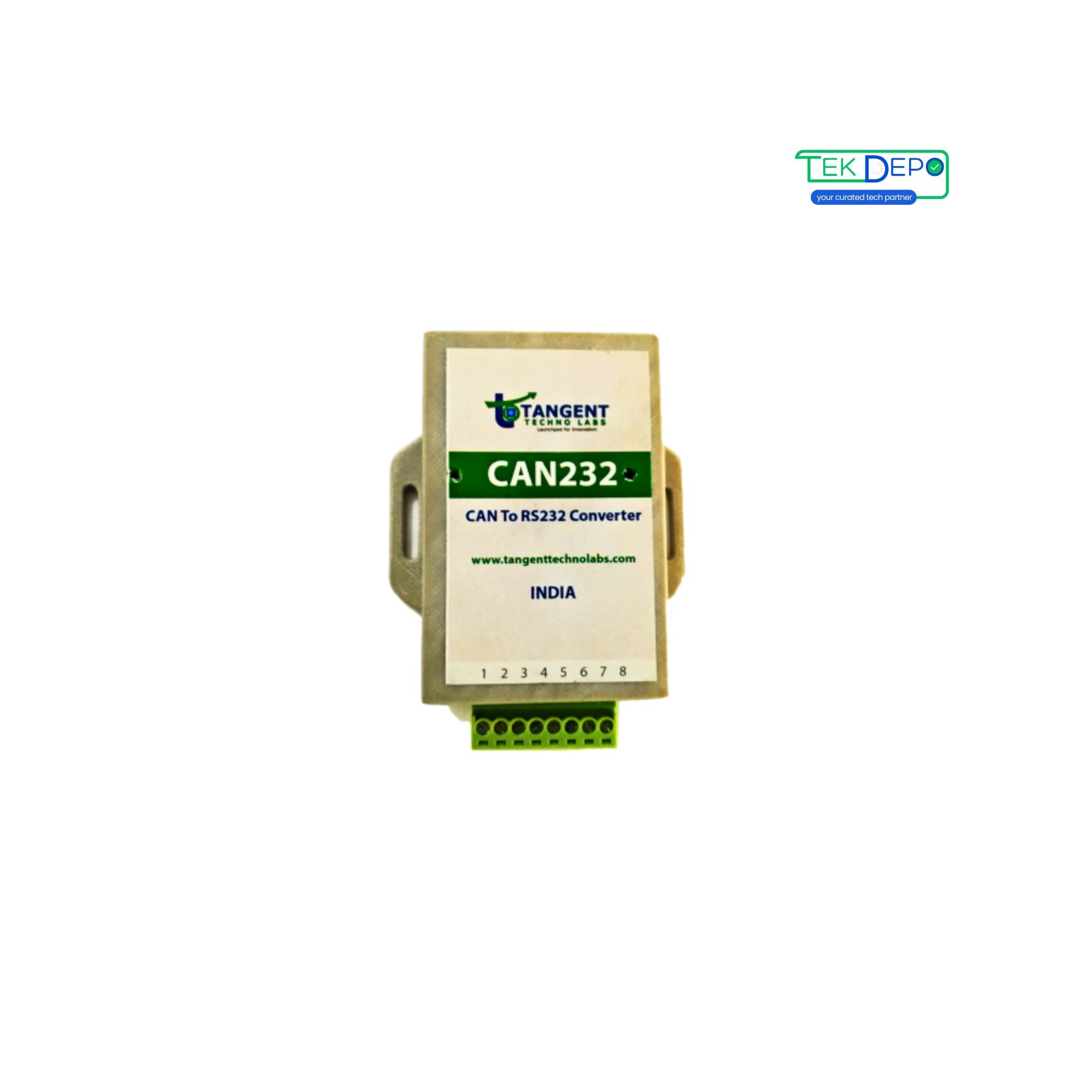

Bridge CAN networks with PCs and serial communication devices effortlessly. This compact converter offers bidirectional communication with wide baud rate support. An isolated version provides enhanced protection. Robust design for various environments, compliant with CAN 2.0A/B.

The intuitive GUI helps the user to configure the CAN to Serial Converter for CAN Bus and UART communication. The GUI is supported on Windows 7 and above.

Product Features

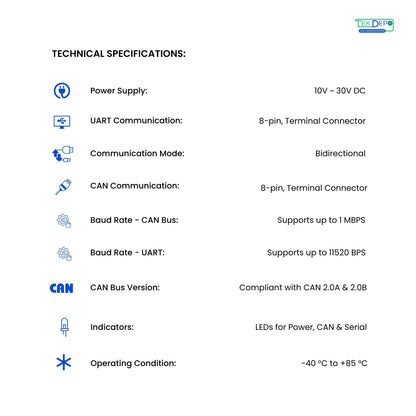

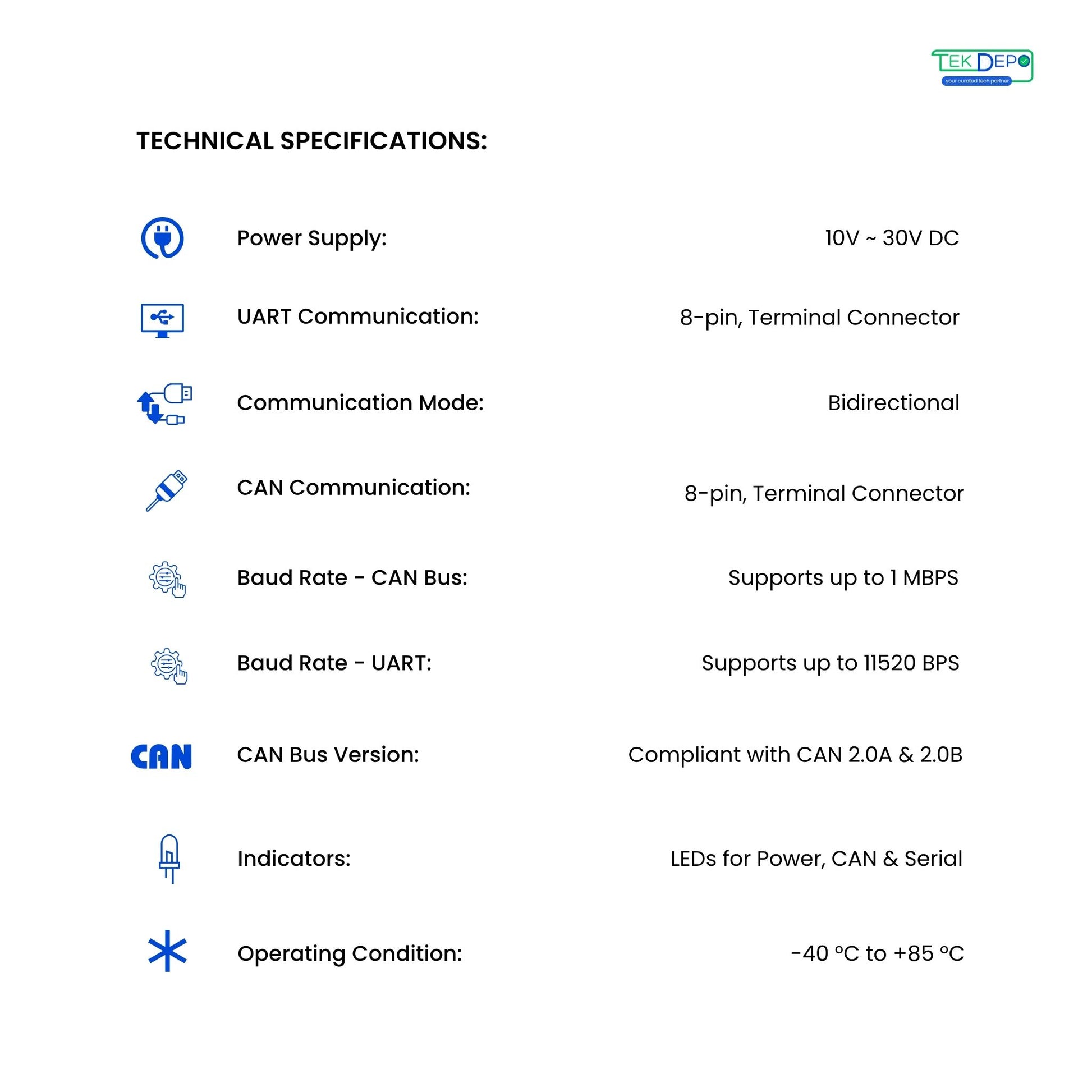

Technical Specifications:

  • Power Supply:  10 to 30V DC.
  • UART Communication:  UART connection via Terminal Connector, 8-pin.
  • CAN Communication: CAN bus connection via Terminal Connector, 8-pin.
  • Baud Rate - CAN Bus: Supports up to 1 MBPS.
  • Baud Rate - UART: Support up to 11520 BPS.
  • Operating Condition: Operating temperature range from -40 to 85 °C.
  • Communication Mode: Bidirectional.
  • CAN Bus version Support: Compliant with CAN Specifications 2.0A and 2.0B.

Key Features :

  • Easy and quick connection to CAN networks and CAN devices.
  • Small size and compact plastic casing.
  • LEDs to indicate CAN & RS232 traffic.
  • Configuration tool for user settings - CAN Baud rate, CAN filters, RS232 Baud rate, etc.

Typical Applications:

  • CAN Network Analysis & Troubleshooting.
  • Battery Management System.
  • Vehicle Network Analysis & Troubleshooting.
  • CAN 2.0A and CAN 2.0B Machines Monitoring.
