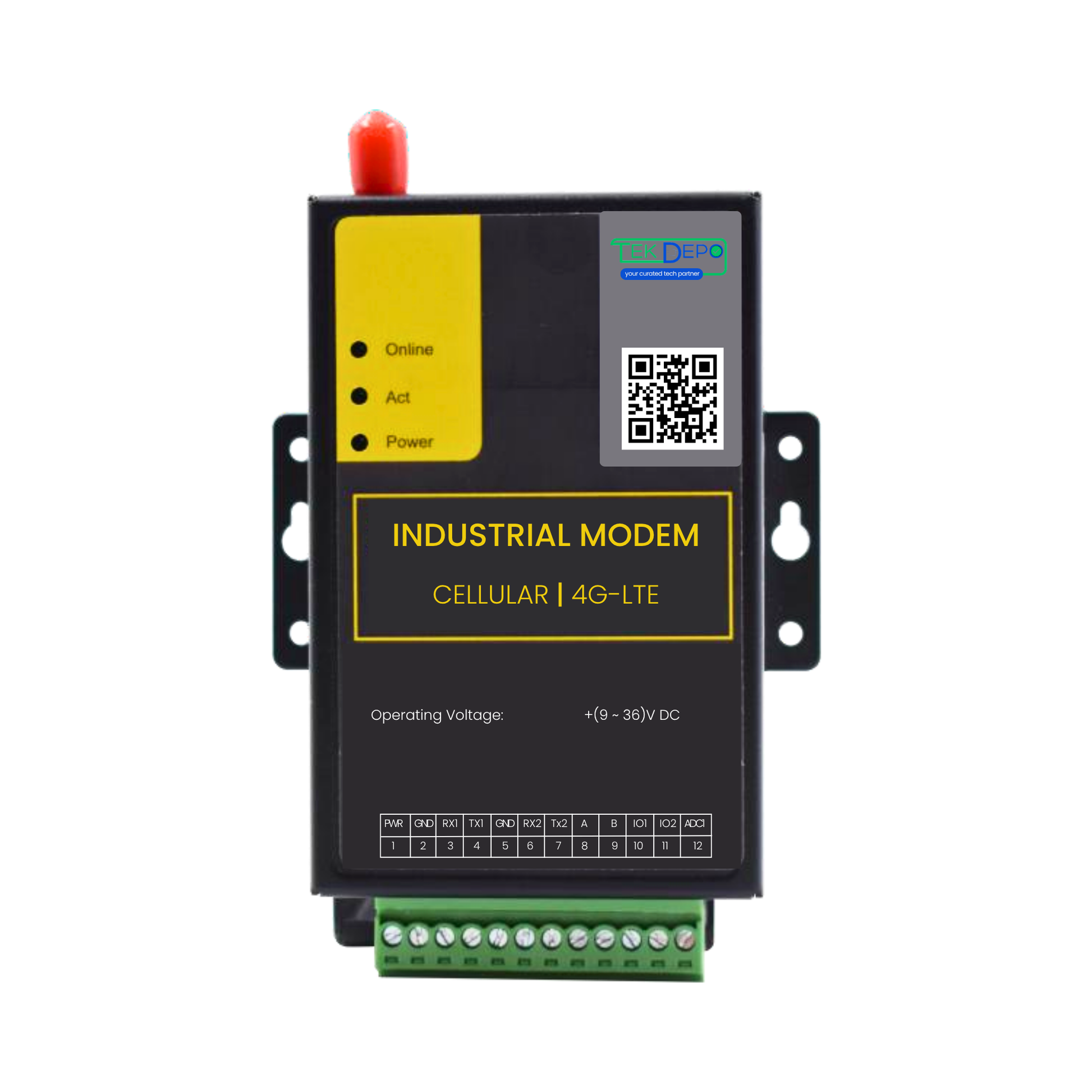

4G LTE CAT-1 Industrial Modem
4G LTE CAT-1 Industrial Modem
LTE CAT-1 | Multi Interfaces | Low Speed Applications
18 in stock
Couldn't load pickup availability
- Global Shipping
- Product Support
- Industry 4.0 Grade
Share
Collapsible content
Product Description
The 4G LTE CAT-1 IP Modem is a high-performance cellular device built for industrial use. It features an embedded real-time OS and a powerful 32-bit CPU, offering low power consumption and robust data transfer via public cellular networks. With RS232 and RS485 ports, along with configurable ADC and I/O channels, it's the ideal solution for transparently connecting existing serial devices to your network.
- Supports LTE CAT-1 for low-speed applications.
- Serial to CAT-1, encrypted transparent transmission.
- Industrial-grade protection, stable and reliable.
- High-reliability for harsh industrial environments.
- Interfaces supported: I/O - 3, ADCs - 2, RS232 - 1, RS485 - 1
Product Specification
Technical Specifications:
GPRS IP MODEM:
- Standard and Band:
(a) Support GSM850/900/1800/1900MHz quad-band,
(b) Supports GSM phase 2/2+,
(c) Supports GPRS class 10/12 (optional 1-12)
- Bandwidth: 85.6Kbps
- TX power: GSM850/900:<33dBm
- GSM1800/1900: <30dBm
- RX sensitivity: <-108dBm
WCDMA IP MODEM:
- Standard and Band:
(a) Support UMTS/WCDMA/HSDPA/ HSUPA/HSPA+ 850/1900/2100MHz tri-band, optional 850/900/1900/2100MHz Quad-band,
(b) Support GSM850/900/1800/1900MHz quad-band,
(c) Support GPRS/EDGE CLASS 10/12
- Bandwidth:
(a) UMTS: 384Kbps(DL/UL)
(b) HSDPA/HSUPA: 2.8 Mbps(DL), 2.2 Mbps(UL)
(c) HSPA+: 21Mbps(DL)，5.76Mbps(UL)
(d) DC-HSPA+: 42Mbps(DL)，5.76Mbps(UL)
(e) TD-HSPA+: 4.2Mbps(DL)，2.2Mbps(UL)
- TX power <24dBm
- RX sensitivity <-109dBm
LTE IP Modem:
- Standard and Band: Support All-modes network: LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
- Bandwidth:
(a) LTE FDD：150Mbps(DL)，50Mbps(UL)
(b) LTE TDD：130Mbps(DL)，35Mbps(UL)
(c) DC-HSPA+：42Mpbs(DL)，5.76 Mbps(UL)
(d) TD-HSPA+：4.2Mbps(DL)，2.2Mbps(UL)
(e) EVDO Rev. A：3.1Mbps(DL)，1.8Mbps(UL)
- TX power: <23dBm
- RX sensitivity: <-98dBm
Hardware System:
- CPU: Industrial 32 bits CPU
- FLASH: 512KB (Extendable)
- SRAM: 256KB
Interface Type:
- Serial:
- 1 RS232 port and 1 RS485(or 2 RS232) port, 15KV ESD protection
- Data bits: 5, 6 ,7, 8
- Stop bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Baud rate: 600-115200 bps
- Indicator: "Power", "ACT", "Online"
- Antenna: Standard SMA female interface, 50 ohm
- SIM/UIM: Standard drawer interface, supports 3V/1.8V SIM/UIM card, 15KV ESD protection
- Power: Terminal block interface, reverse-voltage and overvoltage protection
Note: There may be different components and interfaces in different models, please in kind prevail.
Power Input:
- Standard Power: DC 12V/0.5A
- Power Range: DC 9~36V
Power Consumption(On various working modes):
- Communication:
- 20~65mA@12VDC(2G:20~40 mA 4G:20~65mA)
- 20~95mA@9VDC (2G:30~45 mA 4G:20~95mA )
- Standby: 15~30 mA@12VDC 20~40 mA@9VDC
- Sleep: 5~17mA@12VDC 6~22mA@9VDC
Physical Characteristics:
- Housing: Iron, providing IP30 protection
- Dimensions: 91x58.5x22 mm((excluding antennas and mountings))
- Weight: 205g
Environmental Limits:
- Operating Temperature: -35~+75ºC (-22~+167℉)
- Storage Temperature: -40~+85ºC (-40~+185℉)
- Operating Humidity: 95% ( unfreezing)
Ordering Information:
- TD-IM300-G: GPRS IP MODEM
- TD-IM300-W: WCDMA IP MODEM
- TD-IM300-L: LTE IP MODEM
